Starway 3 axles Semi-Trailer Model And Main Configuration

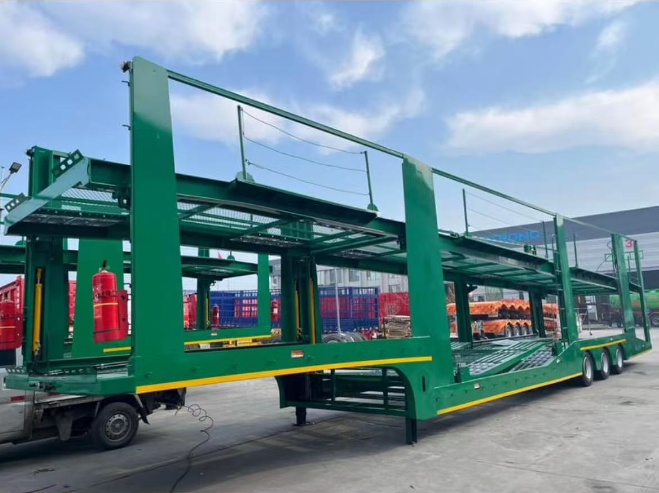

Product name 3 Axles 8 Car Carrier Semi Trailer
Dimension L17000W:2500H:4000mm
Main beam height 400mm Made of high-strength plate,Upper plate 12mmMid web 8mm plate Lower plate 12mm
Loading Capacity 30 Tons
Vehicle Weight About 11.3 Tons
Material T700 Steel
King pin 50-90Interchangeable Assembly1 Set
Floor 3MM porous plate channe Middle 4.0MM mesh Axle 3 Axles 11.5 Ton SAF
Landing Leg Special for car carrier Tire 235/75R17.513 pcs
Suspension Air Suspension Imported airbag
Front axle lifting and rear two axle overall lifting Rim Matching Tire13 pcs
Carrying quantity 8 position Leaf Springs -/-/-/
Toolbox A standard toolbox Brake Valve WABCO–ABS
Spare tire frame 1 Set Color Customers Optional
Electrical system 24V,E-mark lamp,waterproof wiring harnessrear tail light reflector strip side and rear reflector
Spray paint Adopting the whole vehicle KTL powder spraying process (acid washing+phosphating+powder spraying+high-temperature baking)
Other Configuration Electric hydraulic unit. Upper platform hydraulic screw lifting rear two-way cylinder.Tail hydraulic pull-out.With 56 sinkers,the second set of lower level with springboard
Aluminum Alloy Gas Cylinder,16 wheel chocks and16 straps and 2 fire extinguishers
