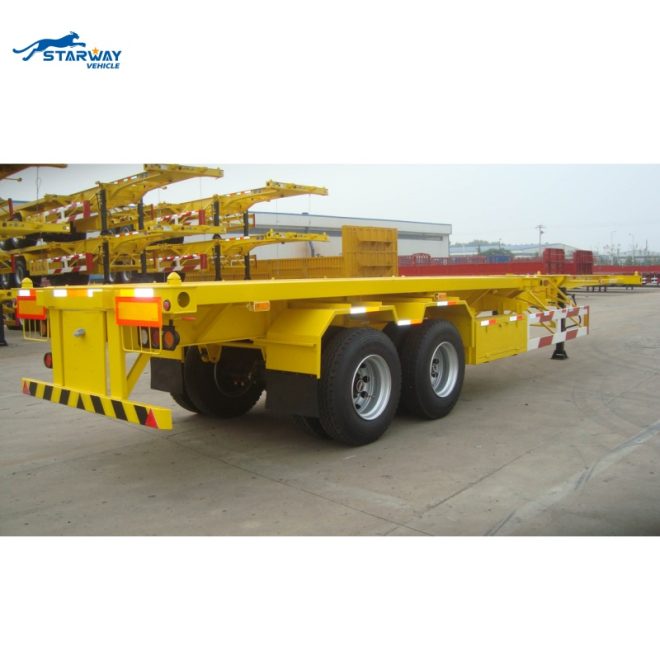

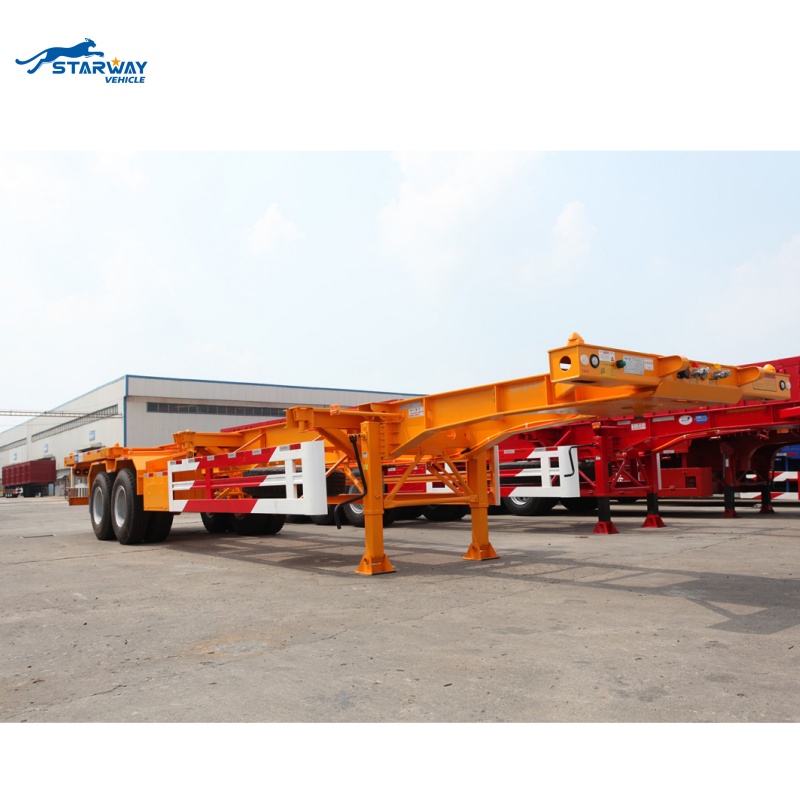

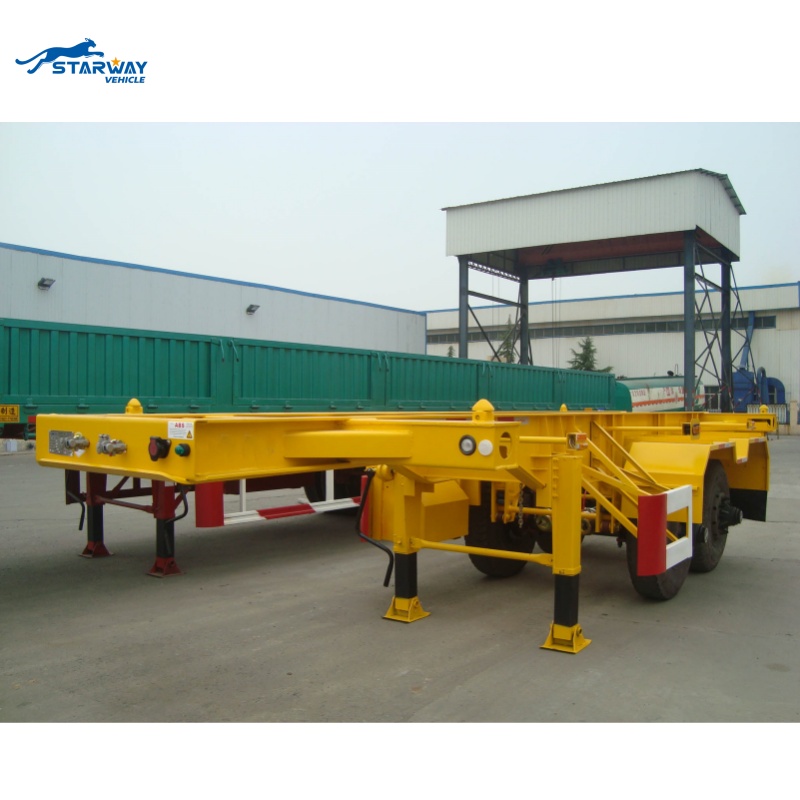

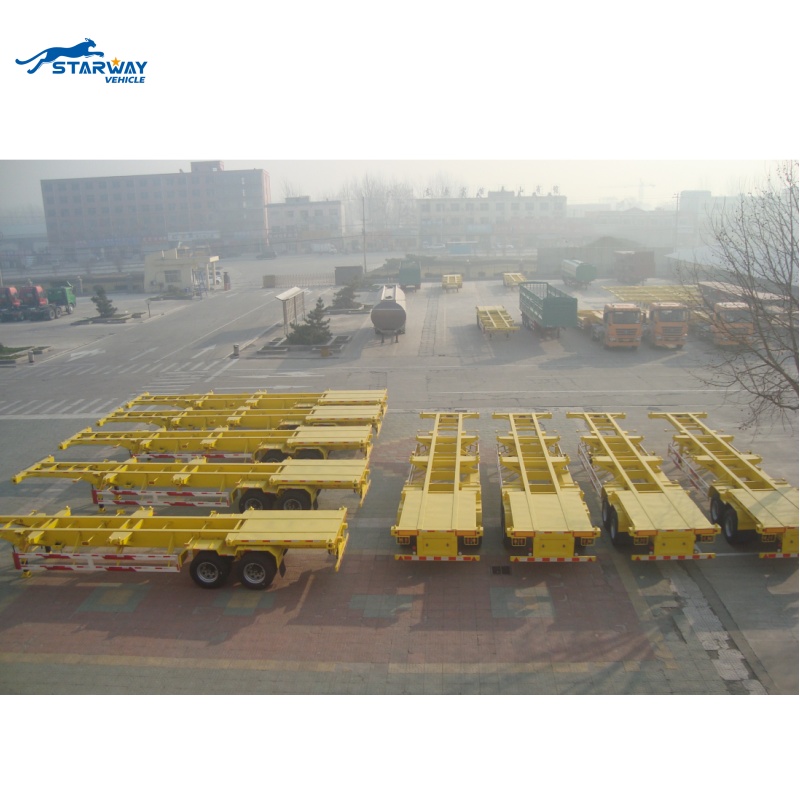

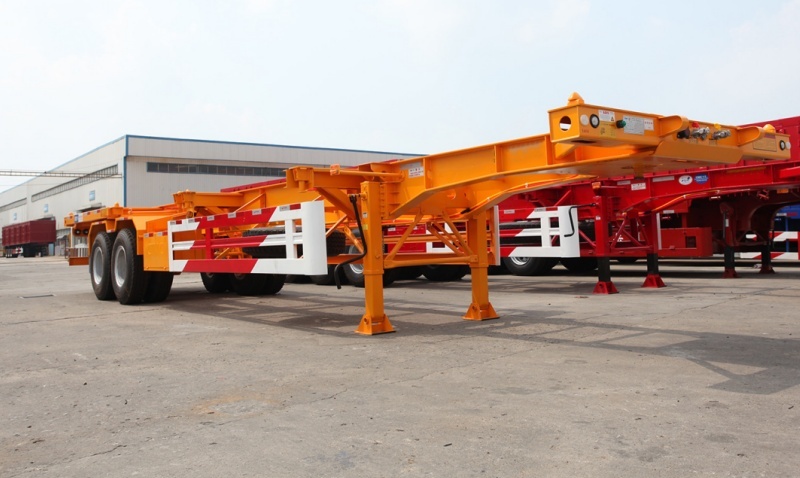

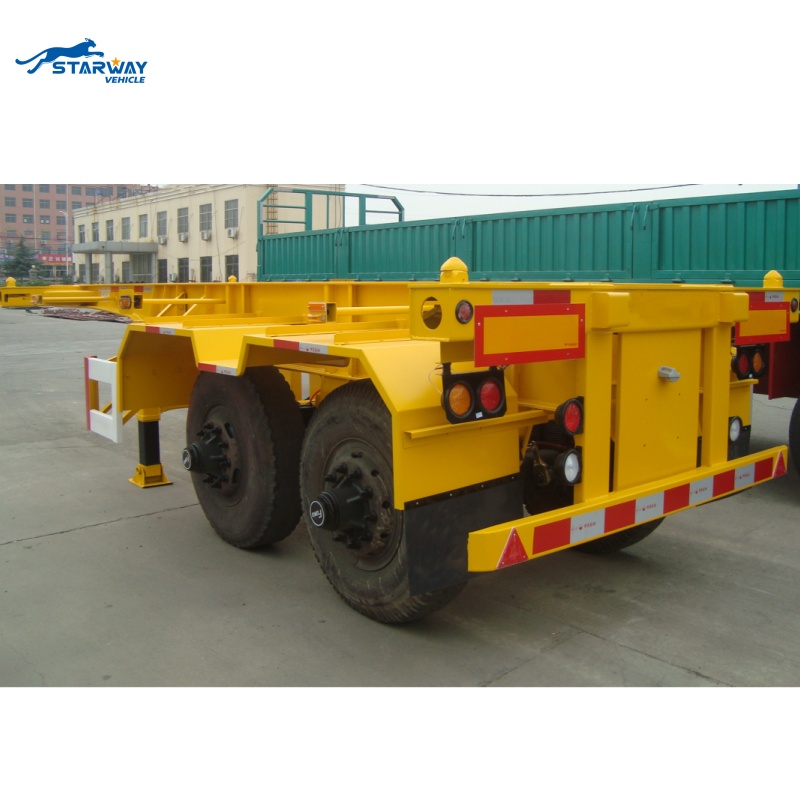

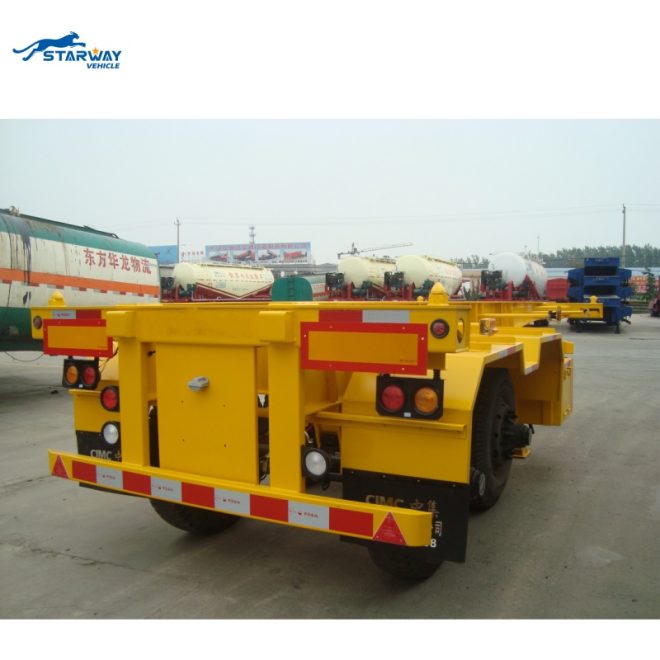

2 axles Container skeleton trailers are mainly used to transport 20ft or 40ft containers and are lighter in weight than flatbed Semi trailers. It saves a lot of material without losing the quality of the product. The chassis is the main component of the semi-trailer and is made of welded steel plates. Container side lifer can be installed on both the front and rear sides of the skeleton trailer to make loading and unloading more convenient. There are 12 sets locks on the skeleton trailer to secure the container.
Product Parameters:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST 28T
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
