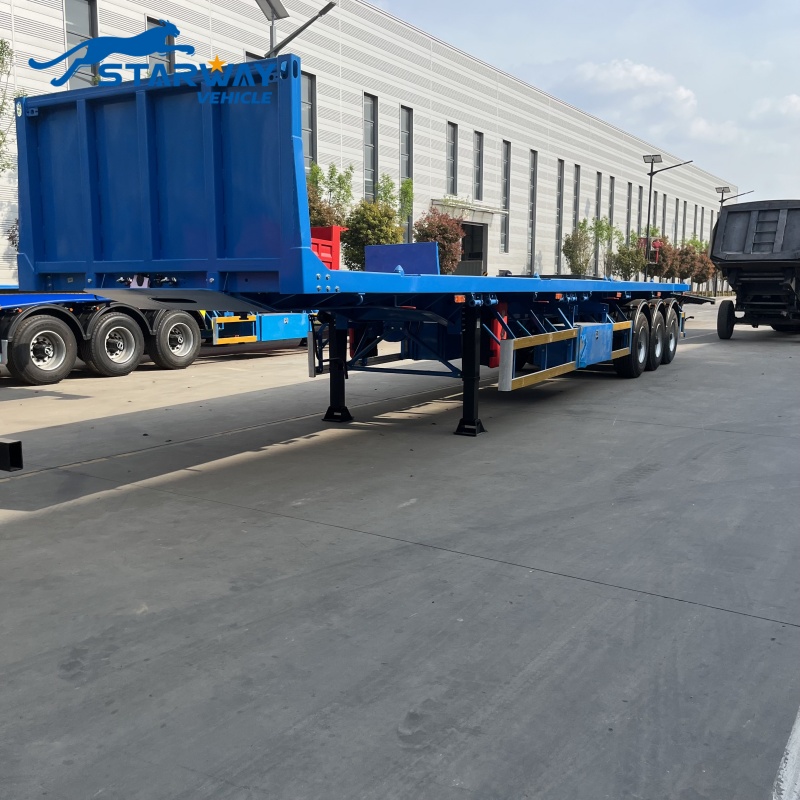

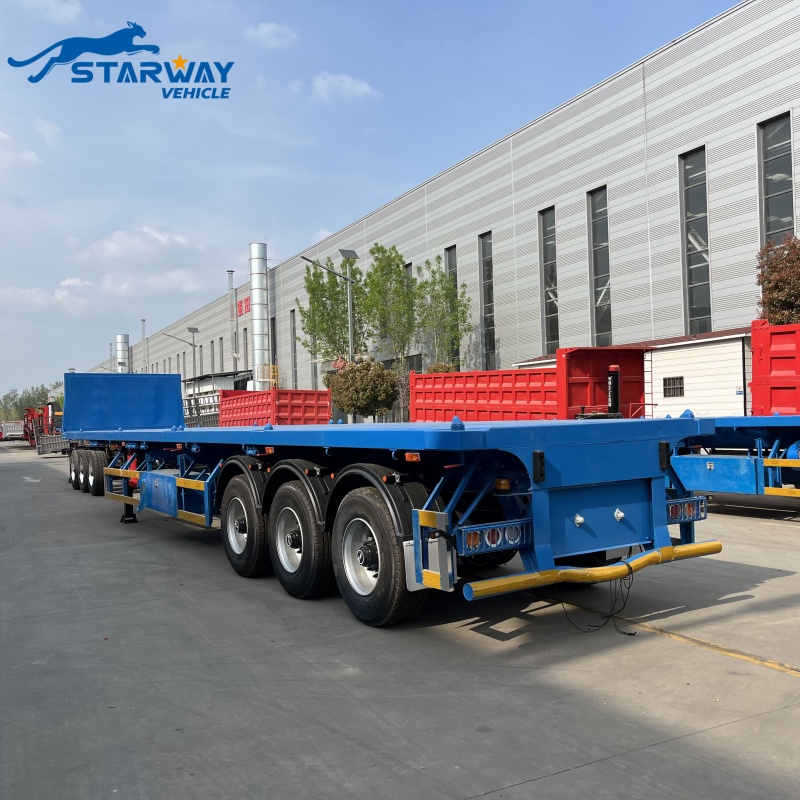

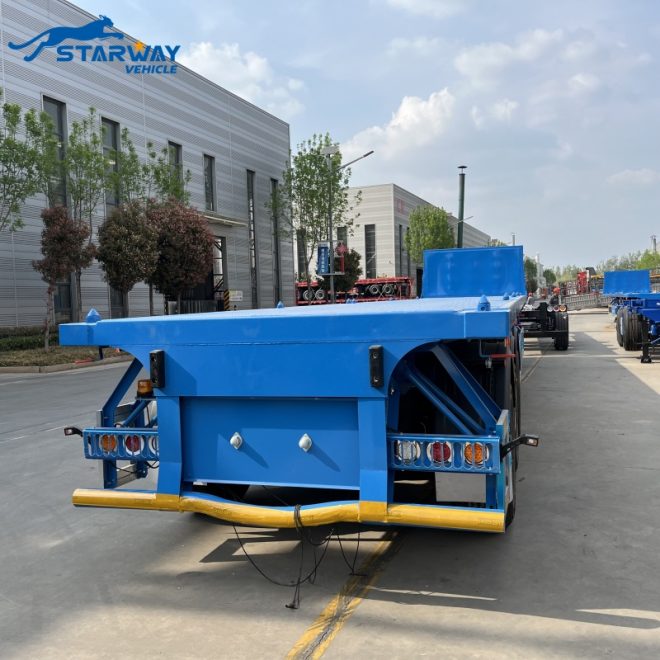

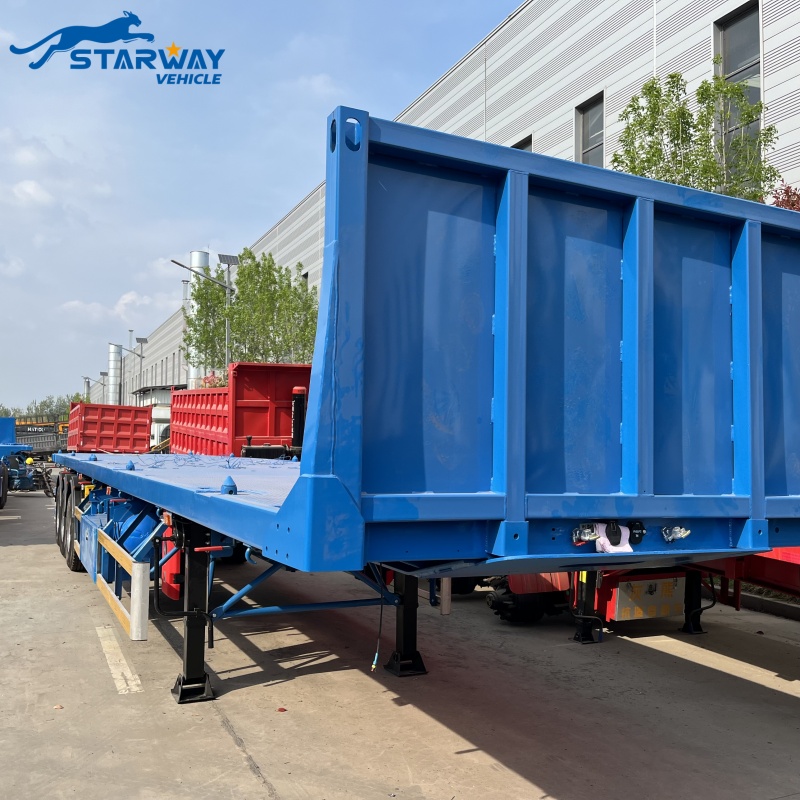

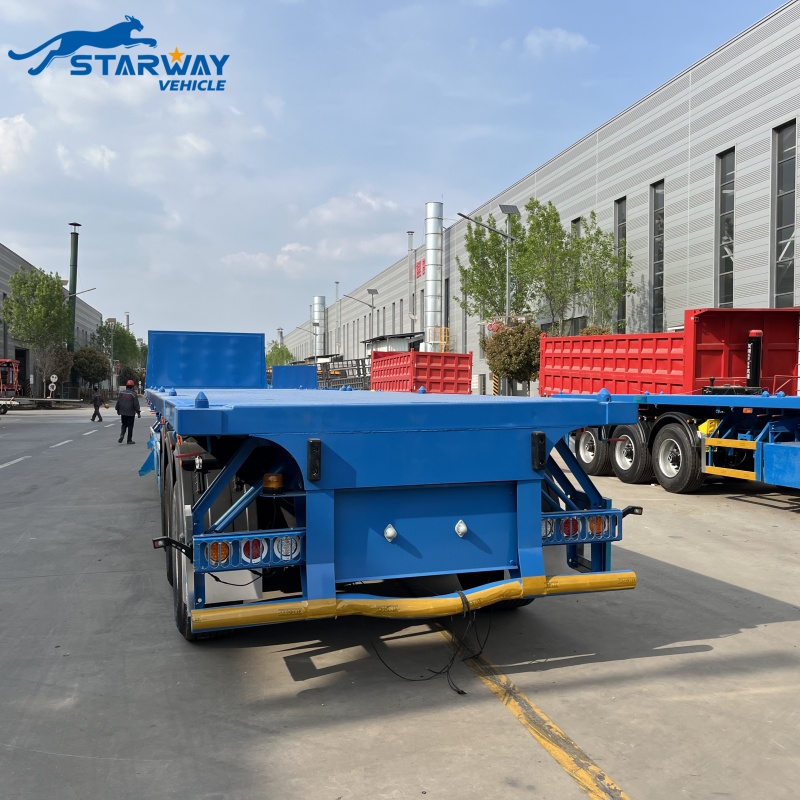

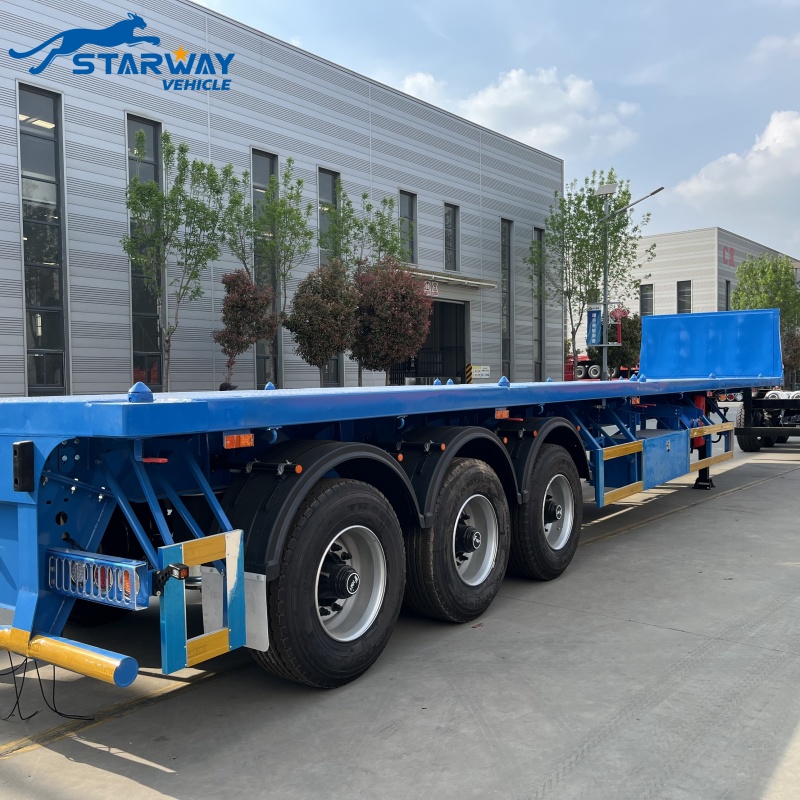

This series of Starway container flatbed semi-trailers are mainly suitable for medium and long-distance transportation of standard 40-foot or 20-foot containers ,It also can been customized according to your needs ,such as extendable 12-21 meter semi trailer . This series of container semi-trailers are divided into flat type, skeleton type, etc.
—Mainly used to transport 1*40FT, 2*20FT, 1*20FT or 1*45FT containers
—High-quality and high-strength steel, strong load-bearing capacity
— TNT brand twist lockx 12 sets
— BPW, FUWA or certified Starway brand axles
—ABS braking system
—WABCO control system
—JOST, FUWA or Chinese brand parking legs and kingpins
—Air suspension and mechanical suspension optional
—2 year warranty
Product Parameters:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
