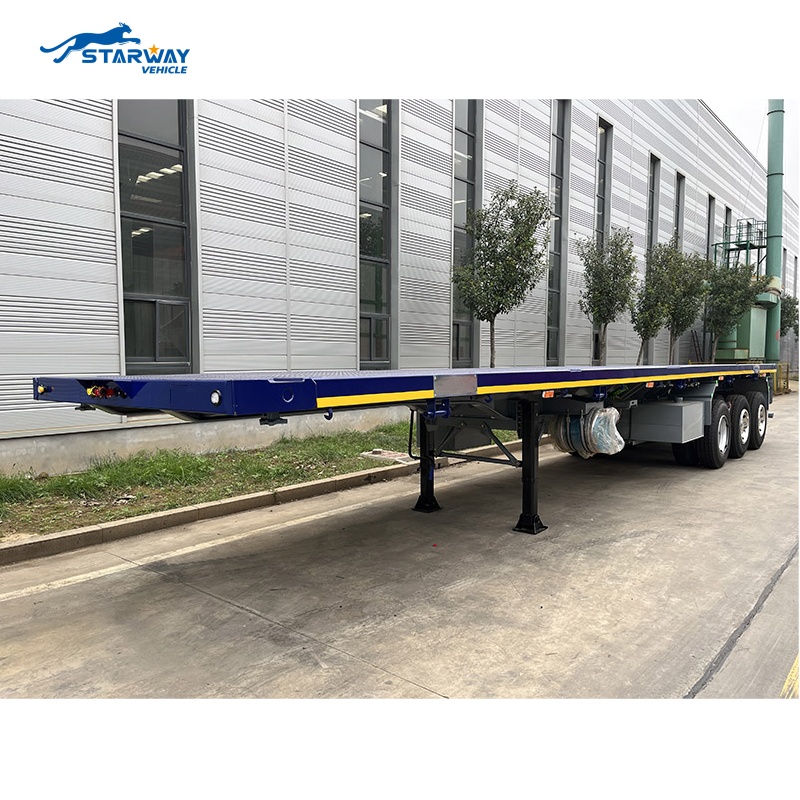

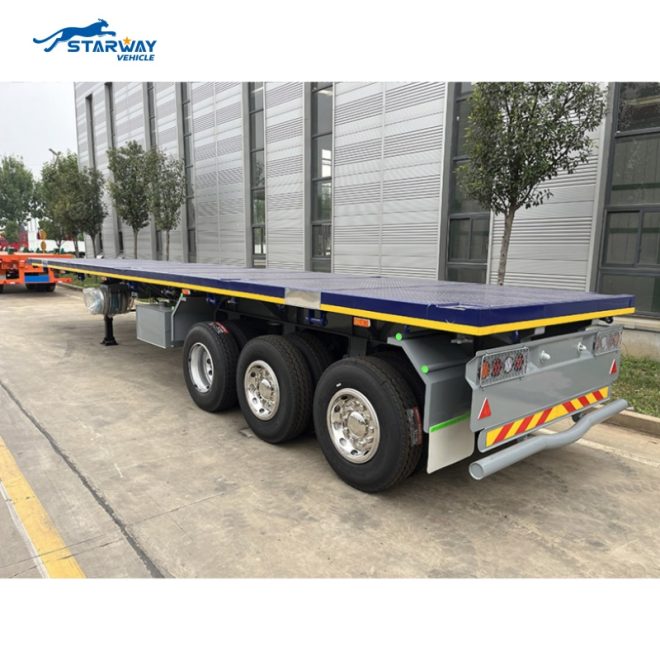

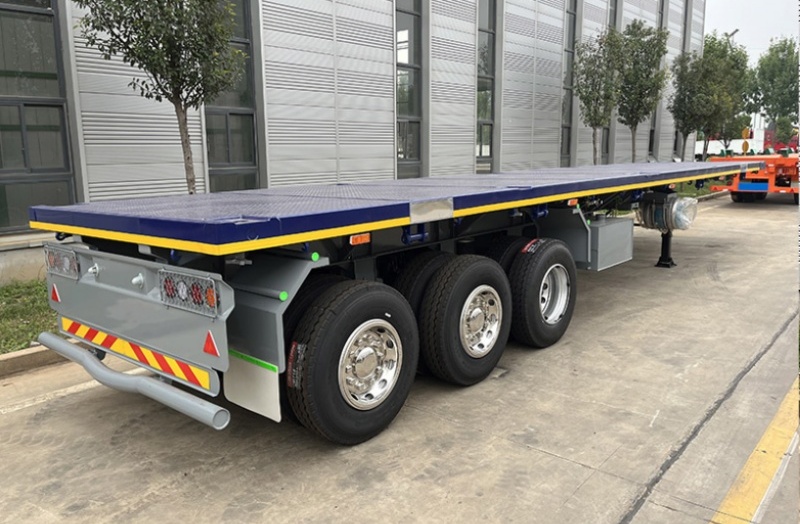

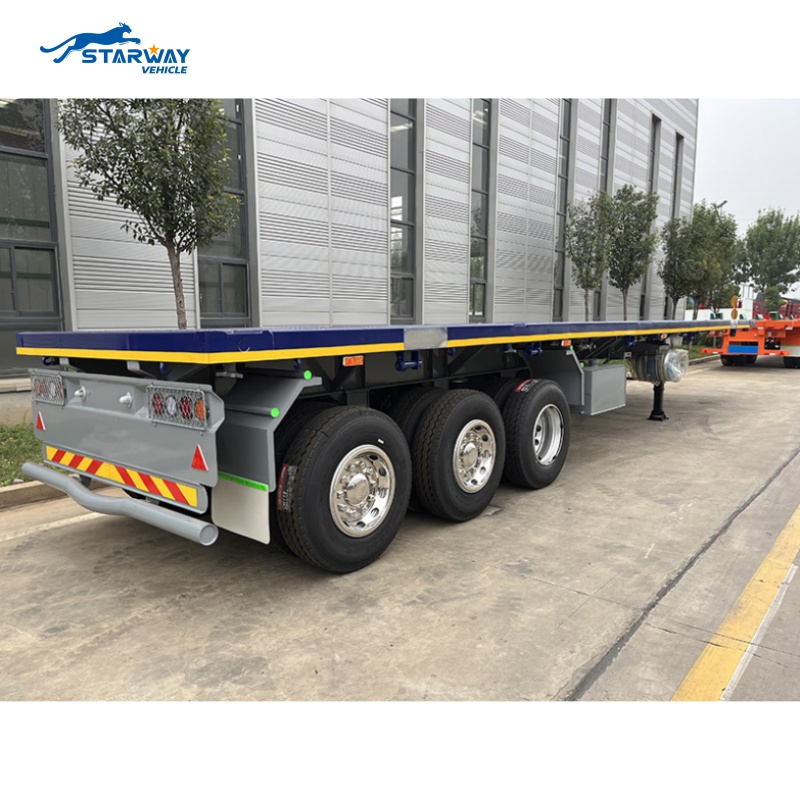

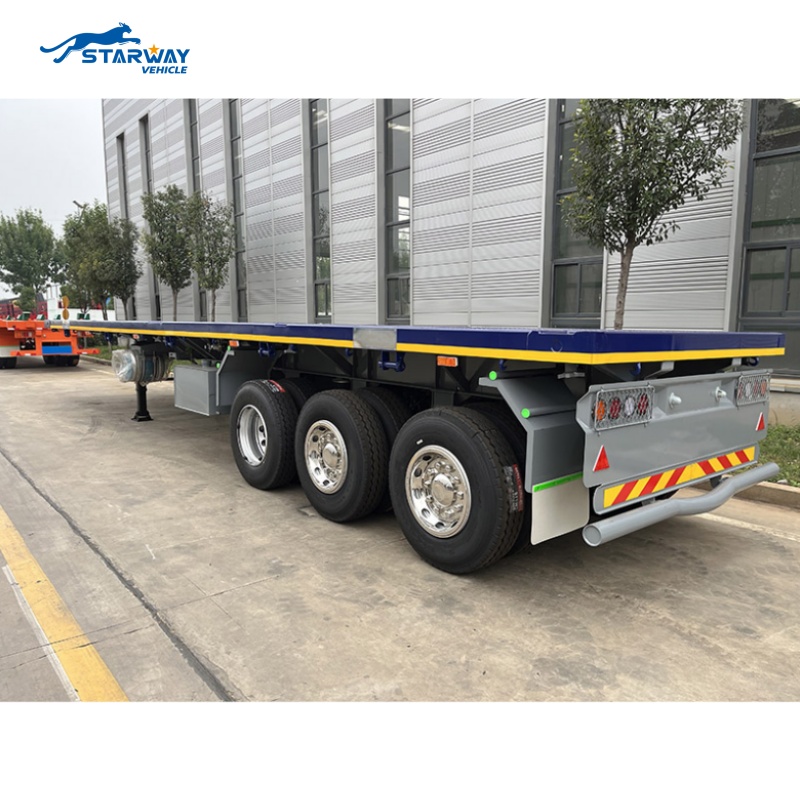

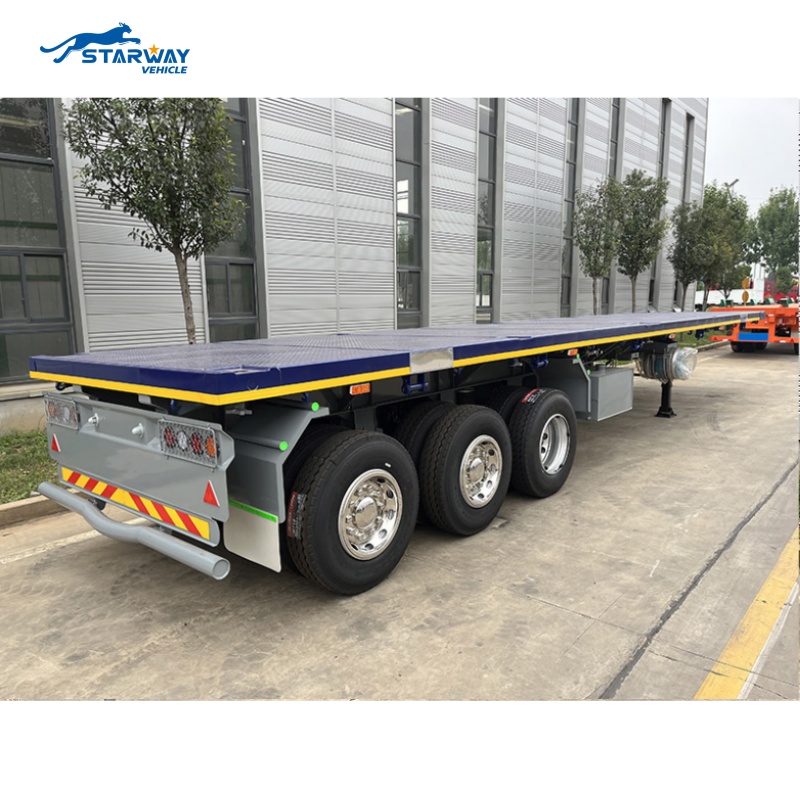

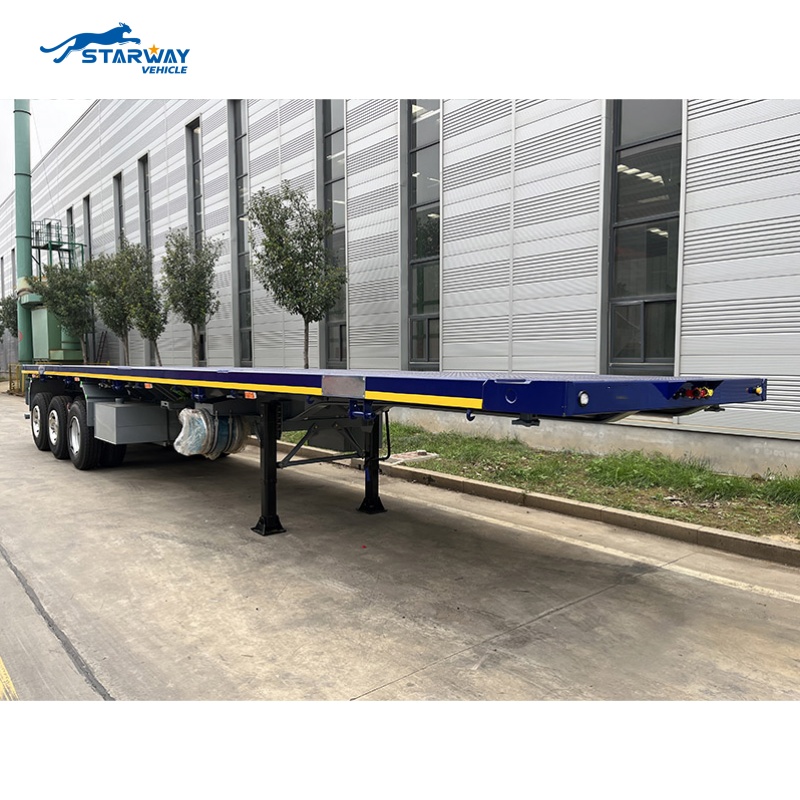

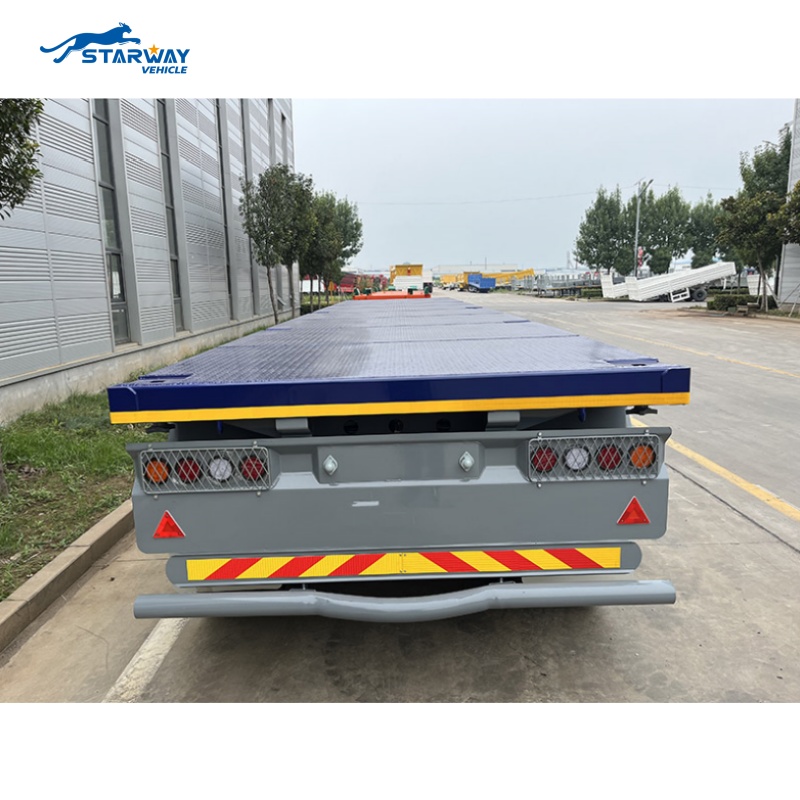

Starway 3 axles Container semi-trailer categories include 20ft /40ft/45-frame trailers and container flatbed trailers. This semi-trailer can be used to transport containers, and can also transport some other goods, such as wood, bagged cement, furniture, home appliances, and building materials. Flatbed trailers are structurally stable and lightweight. To save weight, this trailer type can be produced as a skeleton type, but only for shipping containers. . Custom flatbed trailers are available for transporting specialized equipment. Flatbed semi-trailers are mainly used in ports. Container side loaders can be installed on the flatbed or skeleton semi trailer to make it easier to unload containers.

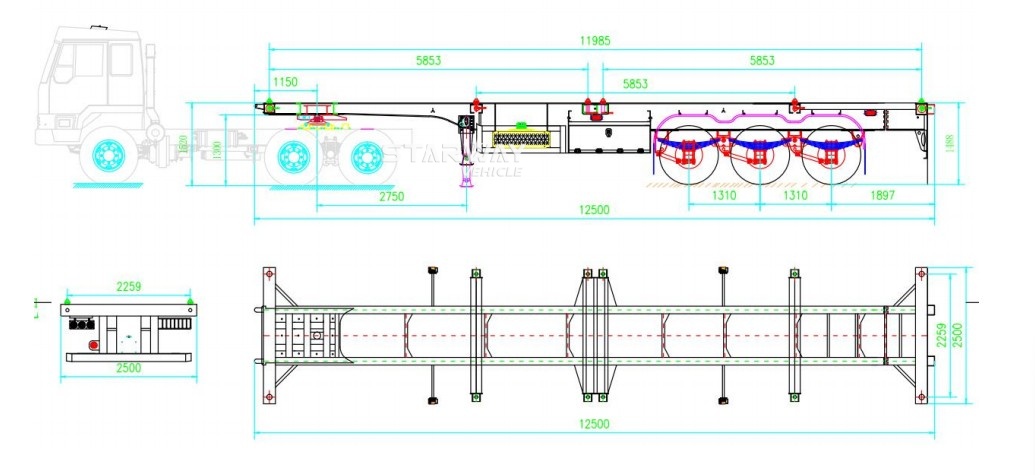

The drawing of Starway 40ft flatbed semi trailer
20ft 40ft/45ft ,Starway proviude customizable flatbed semi trailer ,2/3/4 axles can been customized according to your design ,
Product Parameters:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying
Color:any color
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspensio
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T

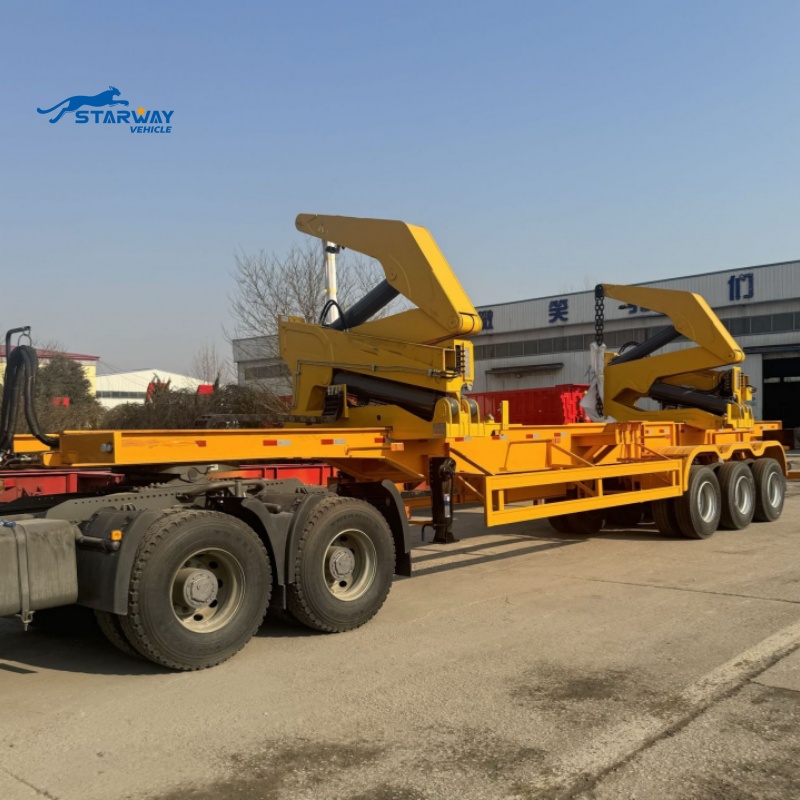

3 axles Starway Container side loader / lifter trailer
