Refrigeration Semi Trailer

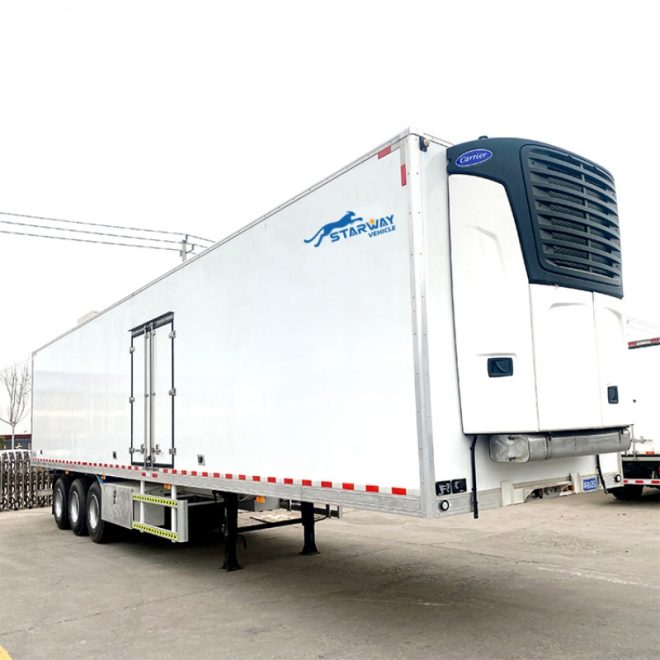

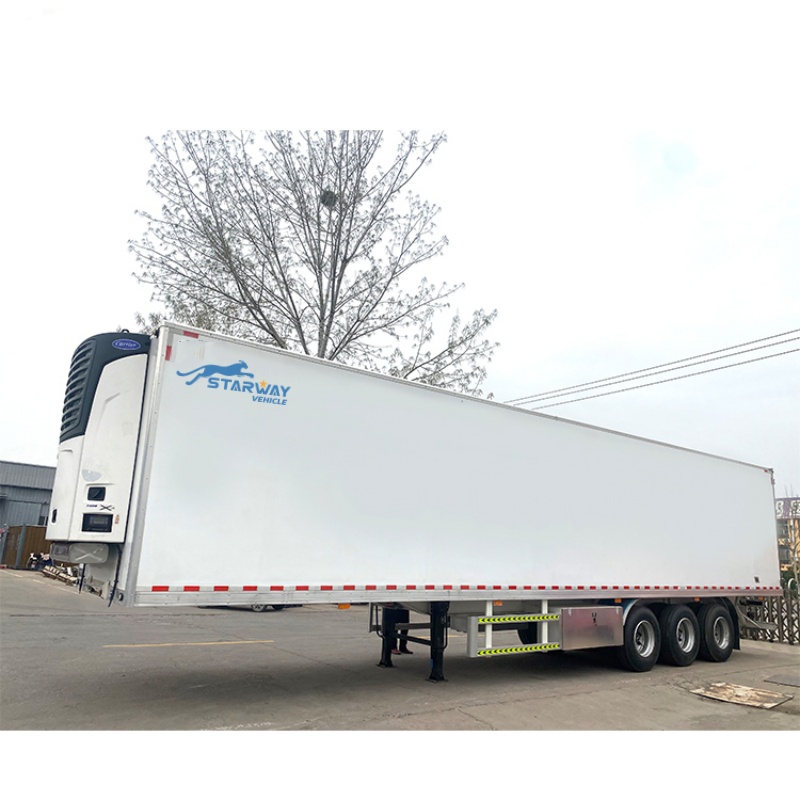

3 Axles 45ft refrigeration Semi Trailer

Starway vehicle brand refrigerated van is a specialized transportation vehicle equipped with a refrigeration unit and a polyurethane insulated compartment for refrigeration. Refrigerated truck semi trailer are commonly used for transporting frozen food (refrigerated trucks), dairy products (dairy transport vehicles), vegetables and fruits (fresh goods transport vehicles), vaccines and drugs (vaccine transport vehicles), etc.

Construction of refrigerated Semi  trailer:

1、 The refrigerated Semi trailer is composed of the walking part of the special vehicle chassis, the insulated and insulated compartment body (usually composed of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), the refrigeration unit, the temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook cars, optional parts such as meat hook, waist, aluminum alloy guide rail, ventilation groove, etc. can be added.

2、 Manufacturing process of refrigerated compartment body:

1. Injection foam type for segmented assembly;

2. Injecting foam into the overall skeleton;

3. Splitting and assembling “sandwich” board adhesive type.

Product Parameters:

Dimension :13500x2600x3995mm

Inner Size:13300X2400X2300,

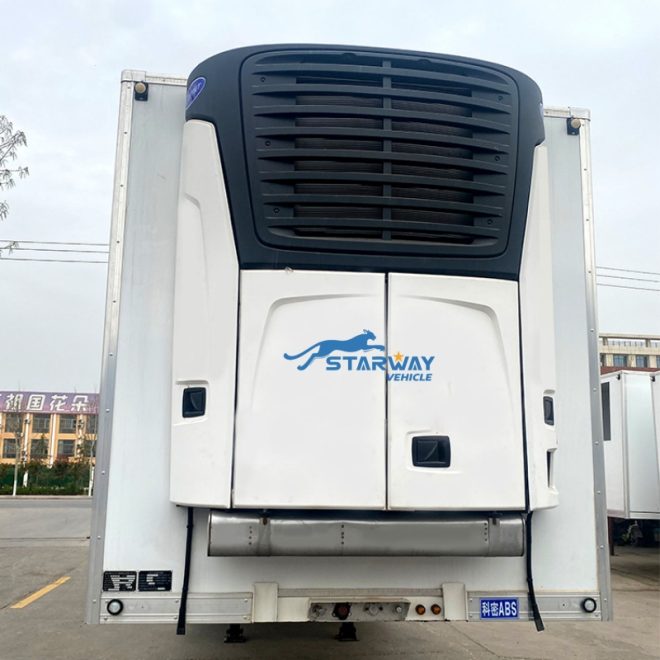

Cooler: Thermo king brand,low temperature up to -20 degrees

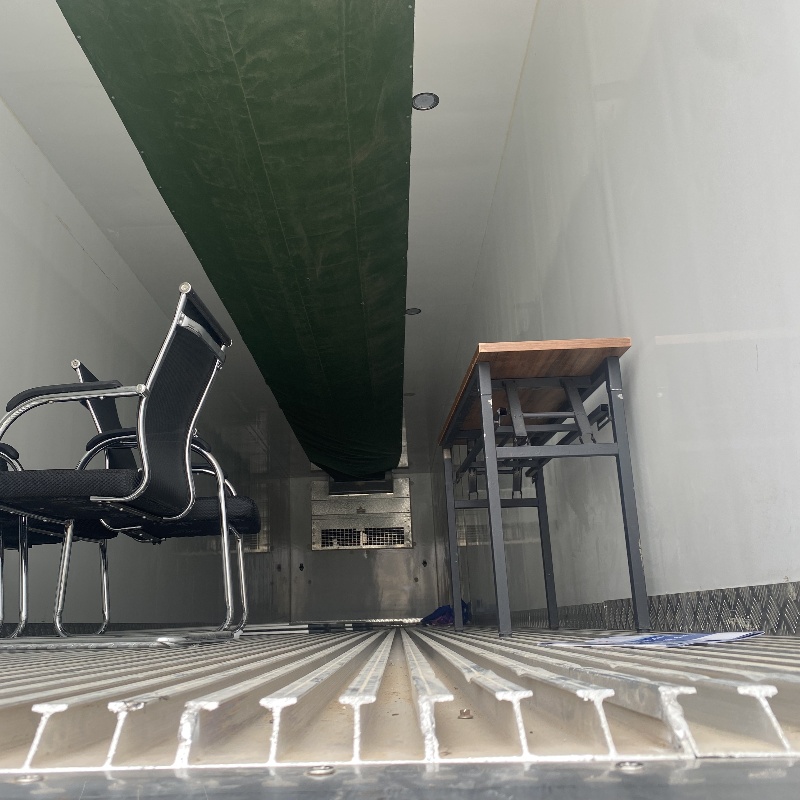

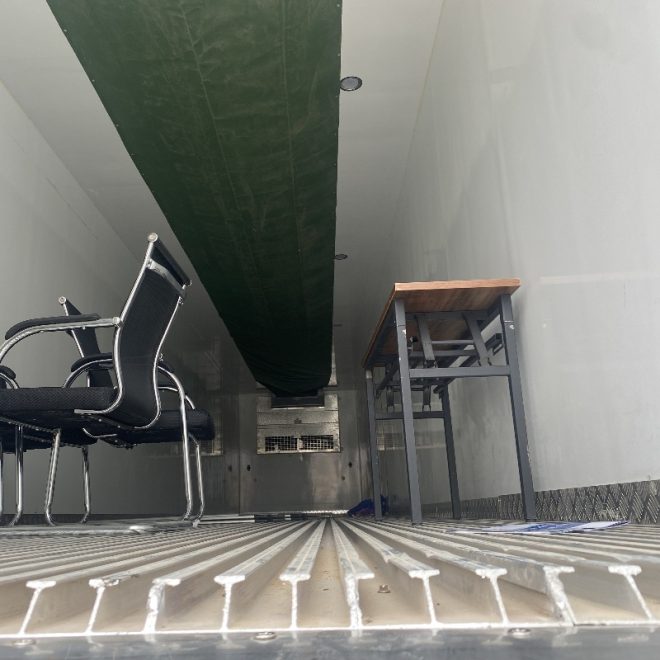

Material floor：Aluminum

Material ：The envelope is made of glass fiber reinforced plastic plate inside and outside, 10CM thick polyurethane insulation board in the middle, high-strength and environmentally friendly natural resin glue

Paint: Powder spraying and coating

Color:Per customer’s requirement

Axle:BPW/Fuwa/Starway/ 13 ton x 3

Tire: Triangle 12R22.5/11.00R20 + one spare tyre

Rim:900*22.5 *13

Suspension:Mechanical suspension or air suspension(brand optional)

Leaf spring:Leaf spring 10pcs*90*13mm or air bag

Landing gear:JOST or other brand two-speed, landing gear 28T

Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS

A

Features

1. Starway adopt fully enclosed polyurethane panels to bond fiberglass structures.
2. The refrigerated and insulated vehicle has no metal frame or connecting parts.
3. The compartment is lighter than similar products and can effectively reduce transportation costs.

Sturdy structure, durable and long-lasting

1. The compartment is made of high molecular weight polyester material and hot pressed, adopting a fully enclosed structure.
2. The integrated internal reinforcement greatly increases the strength of the box panel.
3. High strength and high sealing adhesive is used for plate bonding, forming a whole with good corrosion resistance.

Good insulation performance, meeting transportation needs

1. The refrigerated semi trailer board adopts the “sandwich” pressing method to ensure that there is no air gap inside the box board
2. The compartment has no metal cold bridge and low thermal conductivitySuspension System:we offer mechanical suspension or air suspension according your demand.

Application and after-sale services:

Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts

Main beam : 2 year

Suspension : one year

Axles /Axle bearing : one year

Breaking system : one year

Landing gear /Kingpin:one year

Tyre : 6 month
