Starway 3 axles sidewall trailers can be designed according to the size you need, the standard size is 13 meters, and equipped with container twist locks, can be used to transport 40ft containers, and are manufactured by your professional supplier – Starway
Unlike flatbed trailers or lowbed semi trailer trailers, side dump trailers can be used to transport a variety of objects, from boxes to bulk cargo. Its side panels can be opened for easy unloading. This product is widely used by transportation companies in the logistics industry. The shape and height of the side panels can be customized as per your requirements. There is also a smaller version of this trailer that can be used in homes and towed by a pickup truck or car. The side panels are made of corrugated plates because this steel plate has high strength and is produced using bending technology with a thickness of 3mm.

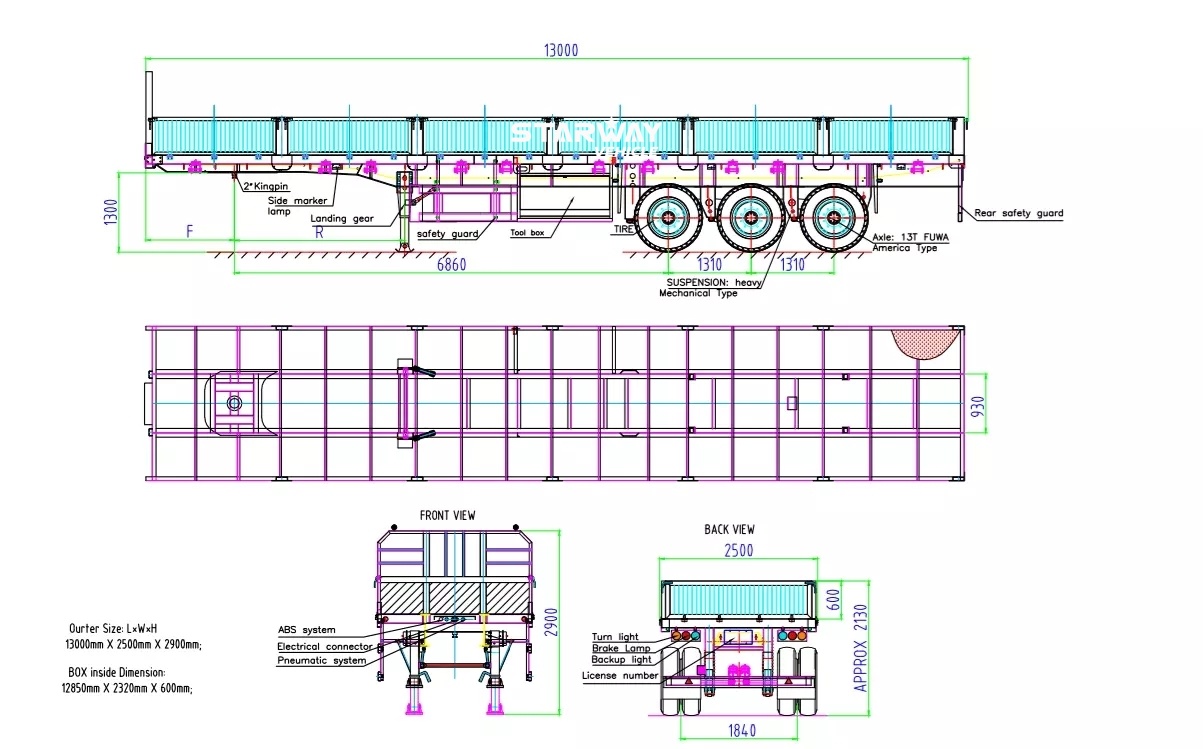

The drawing of sidewall semi trailer as below ( sidewall size can been customized according to client’s demand )
Starway dropside/sidewall semi trailer video
Product Parameters:
Dimension :13000x2500x1580mm
Sidewall Height :600mm
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)
Through beam:#10 channel steel
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Sidewall :600mm-1800mm
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
