Starway fence cargo semi-trailer is a common semi-trailer vehicle, widely used in shipping stations and express companies, mainly used to pull simple goods, such as vegetables, fruits, clothes, electrical appliances and other daily necessities. In addition, it also plays an important role in power engineering and communication engineering, used in small equipment in transportation engineering. The design parameters of the barn-type semi-trailer include the exterior size of 13000X2500X3800 (mm), and the specific parameters such as the chassis model and the cargo compartment size are also given in detail. In the vehicle remarks, the height of the bottom plate to the top is 2000mm, which provides enough space for transportation.
fence

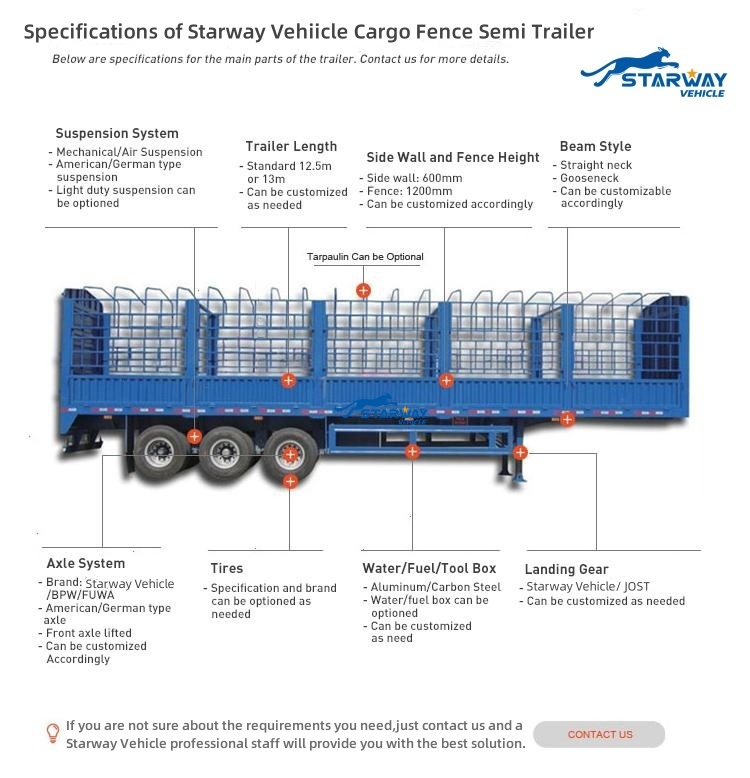

Product Parameters:
Dimension :13000x2500x3800mm
Sidewall Height :1000 mm board +800mm fence high
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 20/12/20(mm)
Through beam:#10 channel steel
Side beam :160 channel steel
Loading capacity :70 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5/315R80.22.5/12R24x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
When using the barn-type semi-trailer, we need to pay attention to some matters to ensure safe transportation. For example, when turning, pay attention to whether there are pedestrians in the blind spot, especially those on battery bikes, because they may suddenly appear in silence. Be sure to check the tires before travel, when reversing the direction is the reverse, need to slow play slowly back, the range is not too big, at the same time to listen to all ears, do not panic. Far away, must check the vehicle half shaft screw, transmission screw, horn, lights, tire pressure and other key components, because these are prone to accidents.
Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
