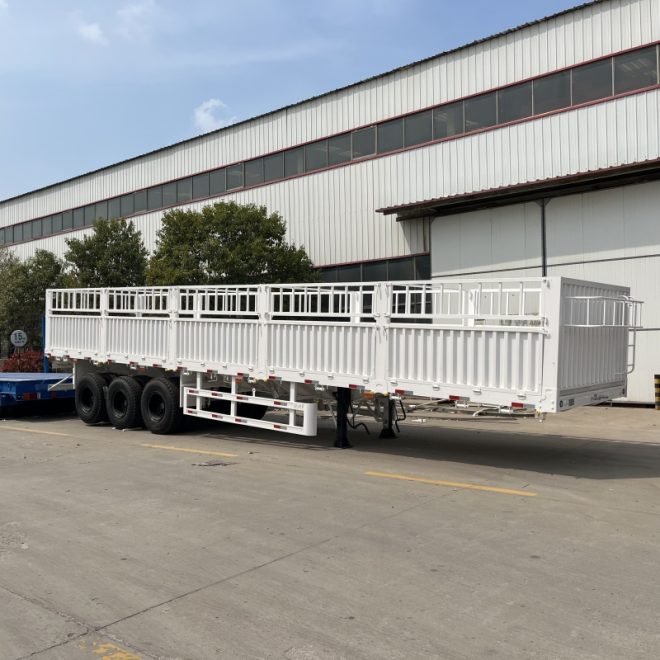

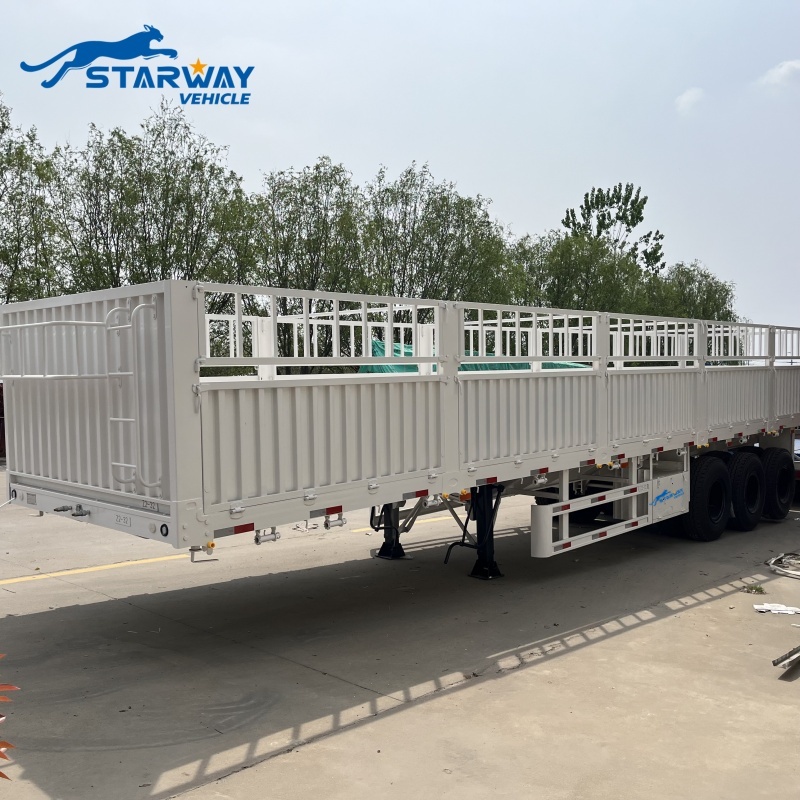

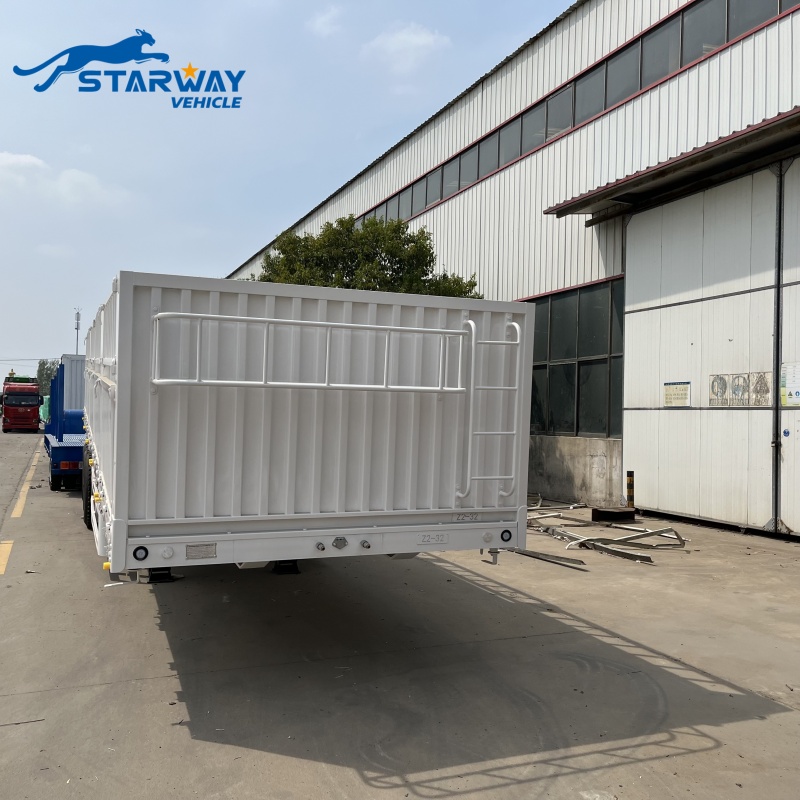

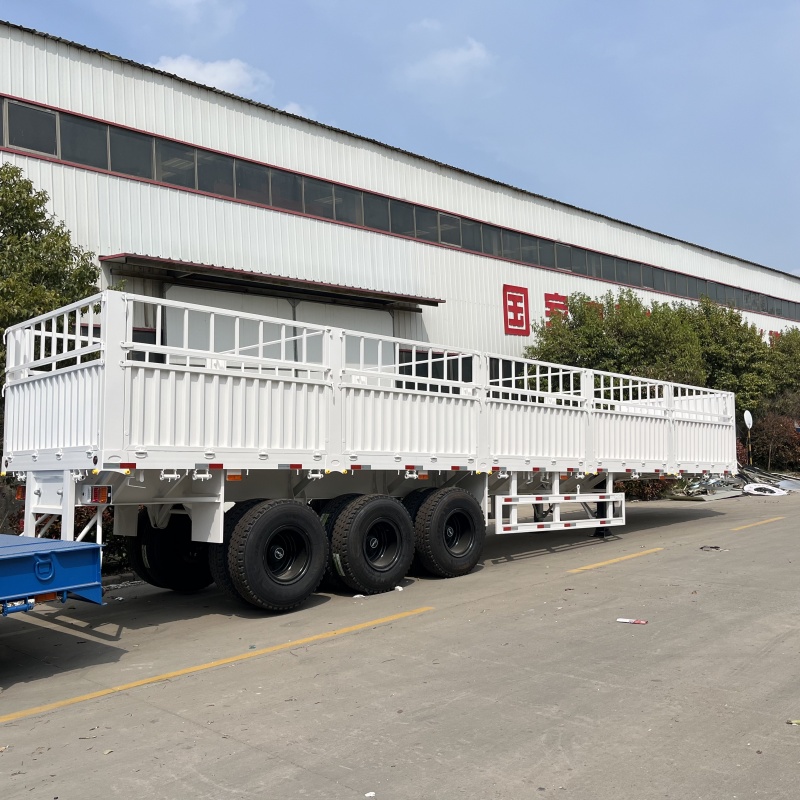

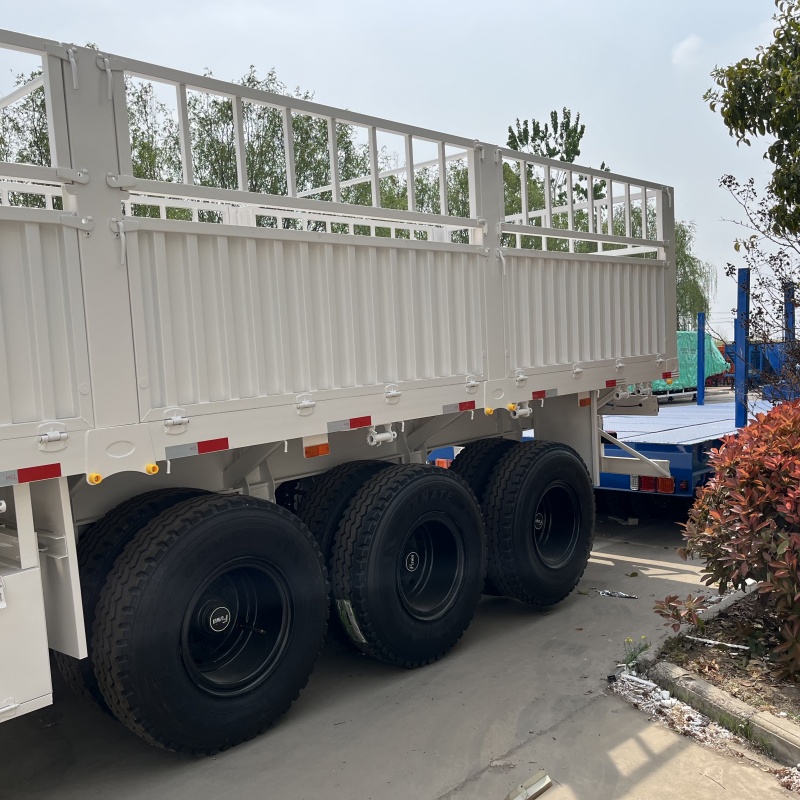

Starway fence cargo semi-trailer has a high loading height and is suitable for stacking goods. This type of vehicle has a wide range of uses and can be used to carry containers, vegetables and fruits, livestock, bagged cement and other bulk goods.
Product Parameters:
Dimension :13000x2500x3800mm
Sidewall Height :1000 mm board +800mm fence high
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 20/12/20(mm)
Through beam:#10 channel steel
Side beam :160 channel steel
Loading capacity :70 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5/315R80.22.5/12R24x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Features
Application Range: This sidewall semi-trailer has a wide range of uses and is mainly suitable for medium and long-distance transportation of medium and heavy and bulk goods. It has strong applicability
Main Beam Structure: The web height is 400mm-550mm, the manganese plate is welded, the longitudinal beam is welded by automatic buried welding, the frame is shot peened, the cross beam is inserted into the longitudinal beam and welded as a whole
Axle Configuration: We can offer 2-4 axles according to the length and loading capacity requirements ,the loading capacity of axles have 13/16/20 ton optional
Suspension System: we offer mechanical suspension or air suspension according your demand.
Container Twist Locks: 12 sets which can load 20x20ft or 40ft container after remove these detachable sidewall
Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
