4 axles 14 meter container flatbed semi trailer ,it usually made of high-strength steel, with excellent load-bearing capacity and compression resistance,It is mainly used in ports, logistics, terminals and other places to transport cargo in containers of more than 20 feet, 40 feet, and 53 feet. the suspension system, mechanical leaf spring suspension, or air suspension system, which can effectively absorb shock and improve driving stability.
The specification of Starway 4 axles flatbed semi trailer
Dimension :14000x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;16/8/14 mm
Side beam :#16 channel steel
Loading capacity :80 ton
Color:optional
Axle:BPW/Fuwa/Starway/ 13 ton or 16 ton x 4
Tire:12R22.5x 16 + one spare tyre
Rim:900*22.5 *16
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag suspension

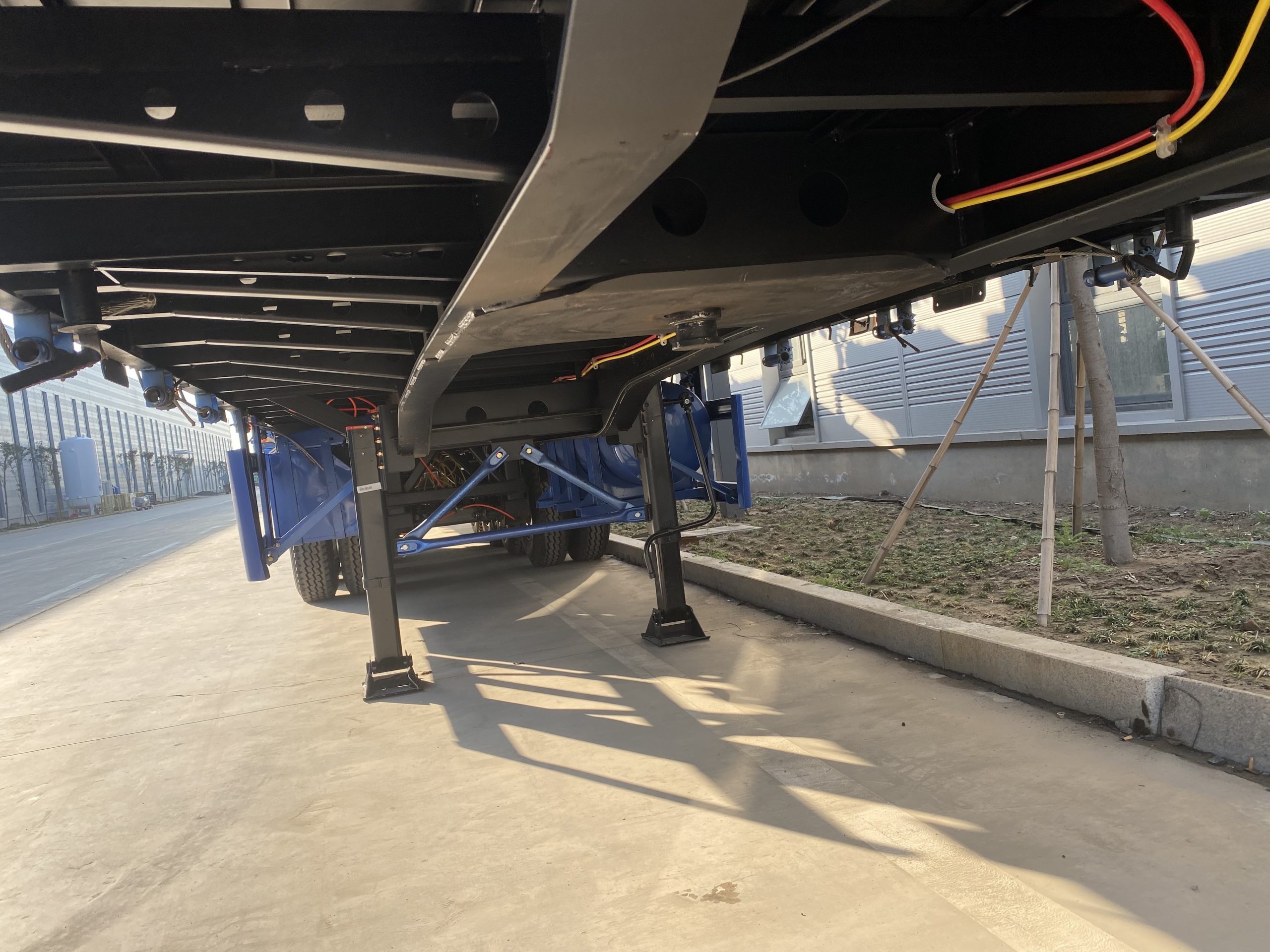

Landing gear:JOST or other brand two-speed, landing gear 28T
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
