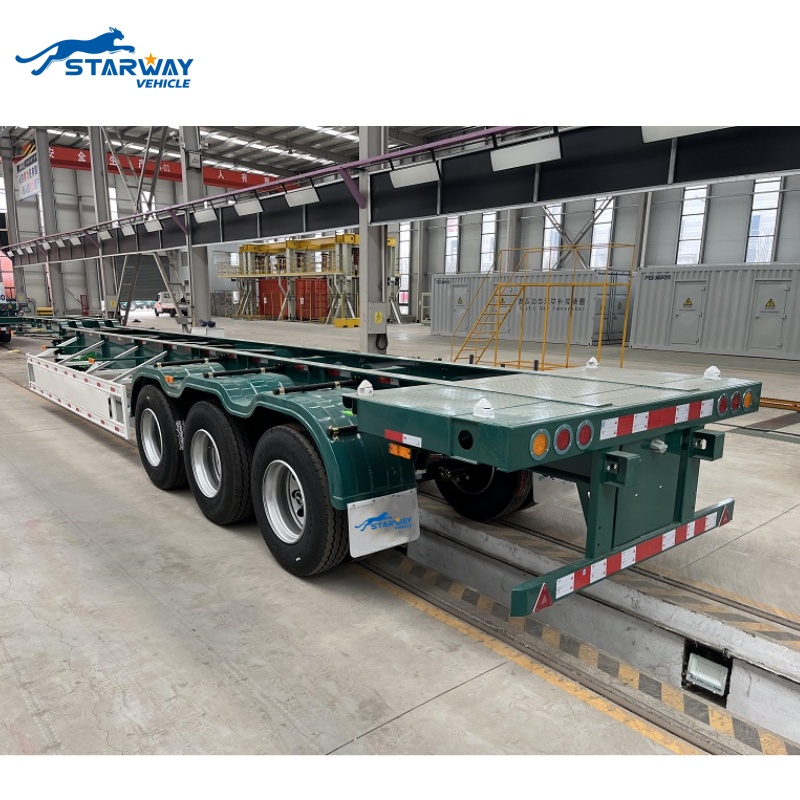

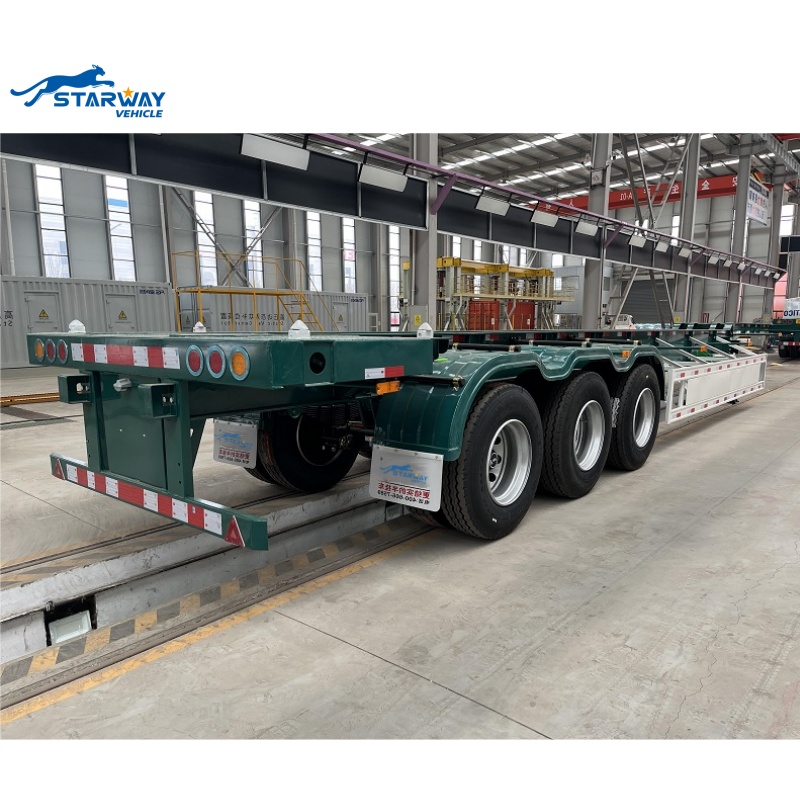

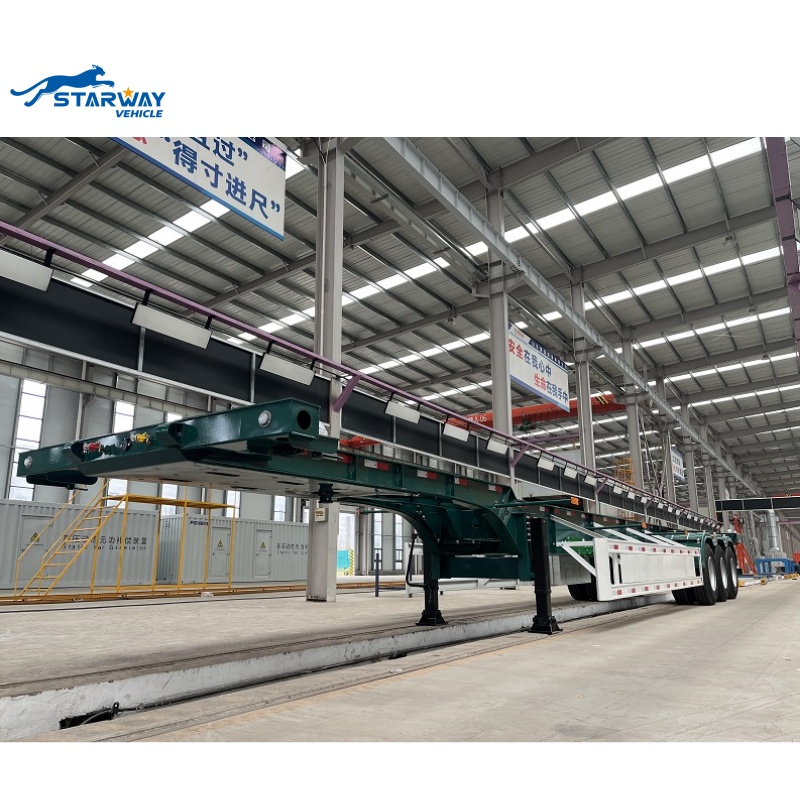

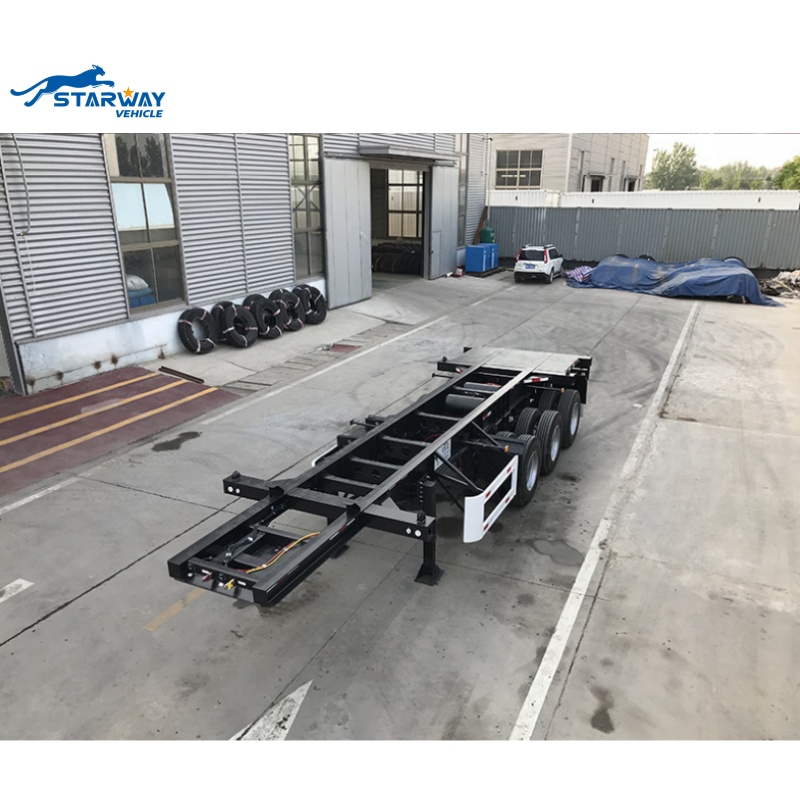

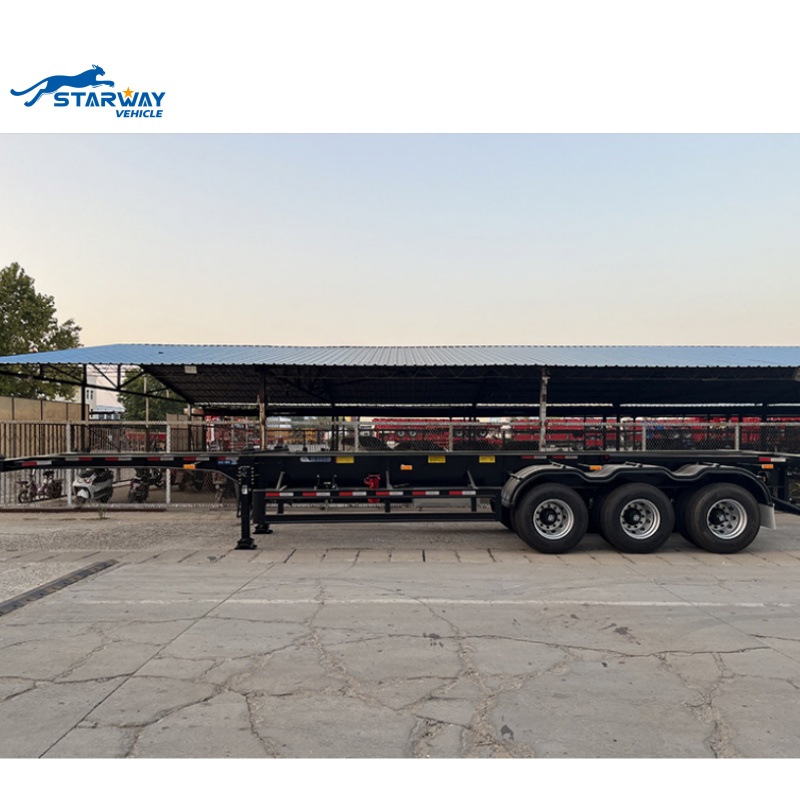

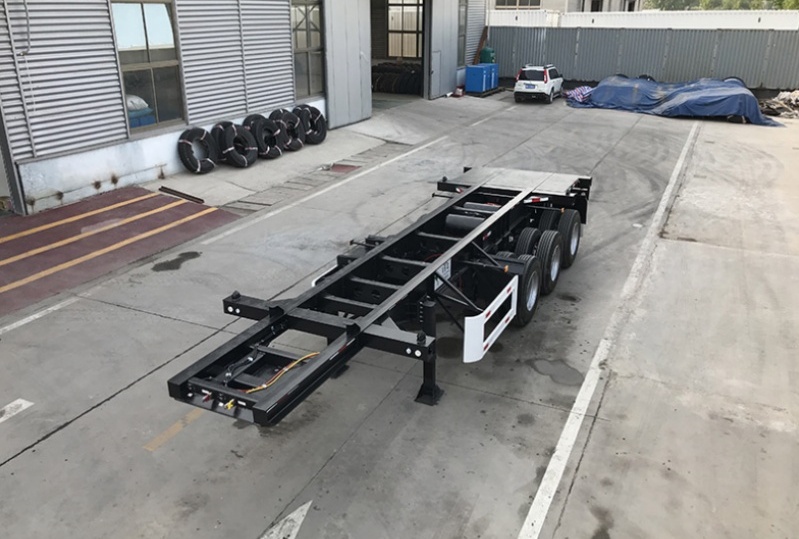

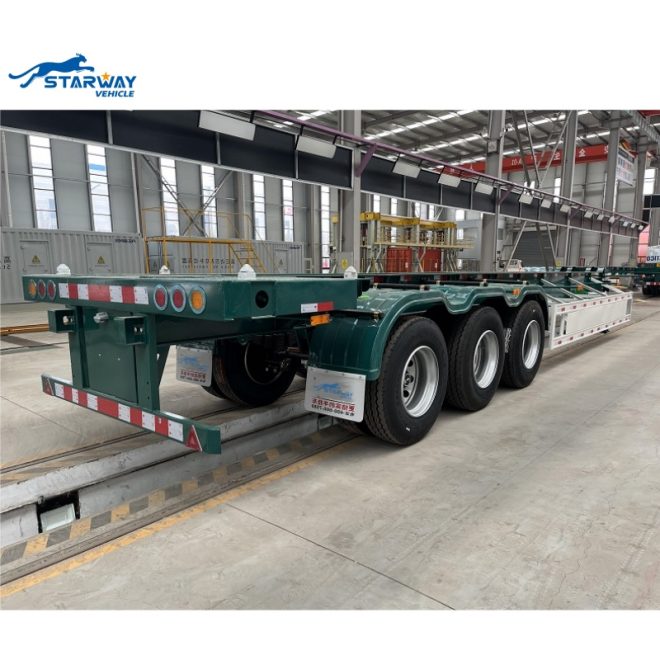

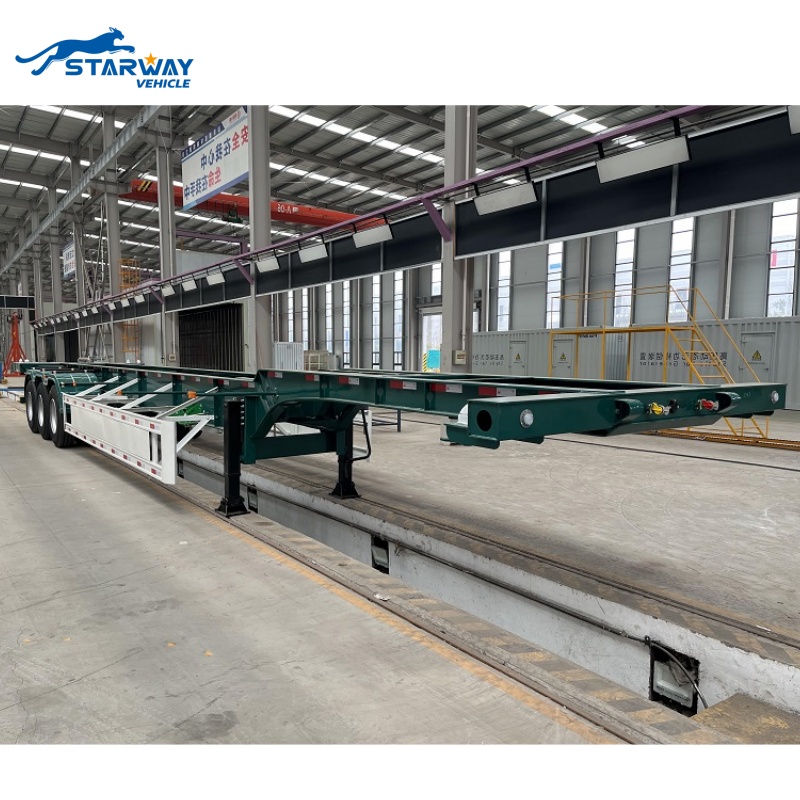

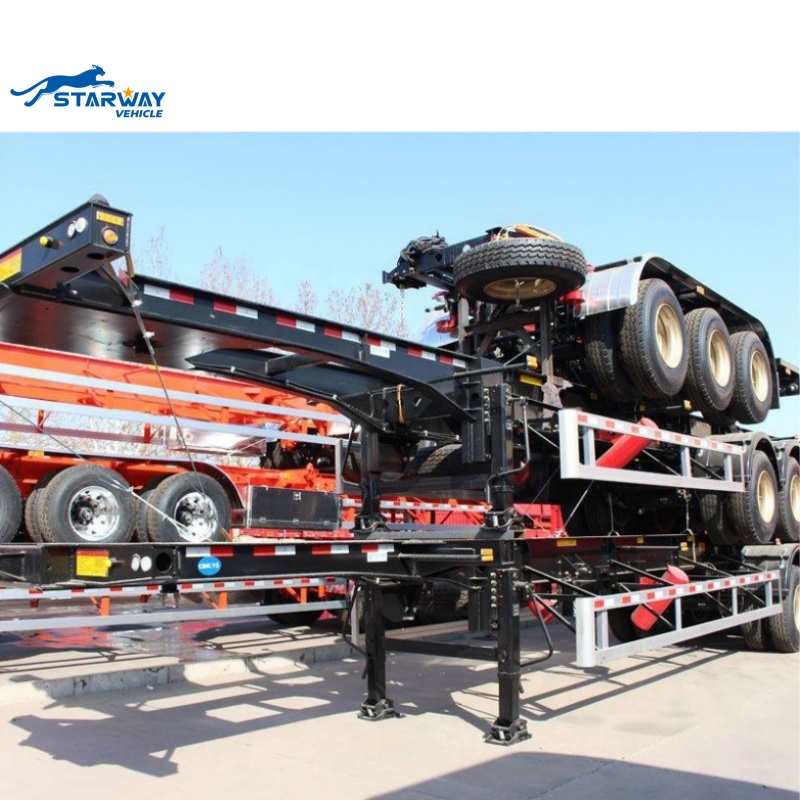

Starway 40ft and 20ftx2 ，45ft Container skeleton semi-trailers can transport 20-foot and 40-foot containers, also called container chassis semi trailer ,It reduced weight ,but don’t lost quality
Starway is professional manufacturer for truck semi trailer ,we can supply different kinds of semi trailer ,lowbed semi trailer ,flatbed semi trailer ,fuel tanker semi trailer ,dump semi trailer and so on
Product Parameters:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Features
Application Range: Starway skeletal trailers are designed for efficient container handling. We can customize the trailer to suit your needs,if container transport or internal port use.
Main Beam Structure: The main beams Starway skeleton semi trailer is made by Q345 or T700 steel, providing a sturdy and durable frame that can loads heavy goods , even in bad road conditions.
Axle Configuration: We can offer 2-6 axles according to the length and loading capacity requirements ,the loading capacity of axles have 13/16/20 ton optional
Suspension System: we offer mechanical suspension or air suspension according your demand.
Container Twist Locks: 12 sets which can load 20x20ft or 40ft container
Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
