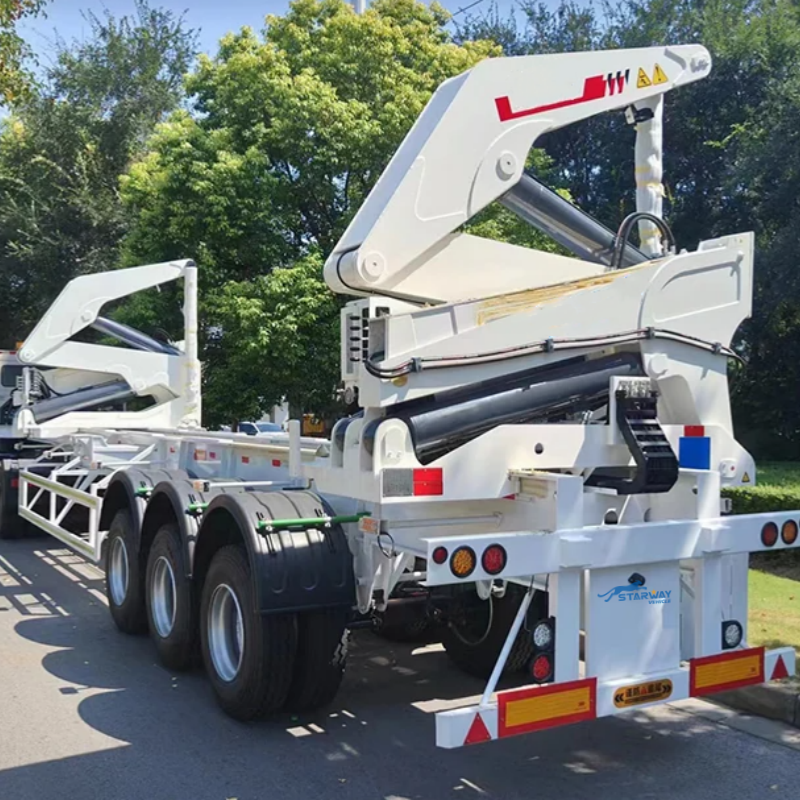

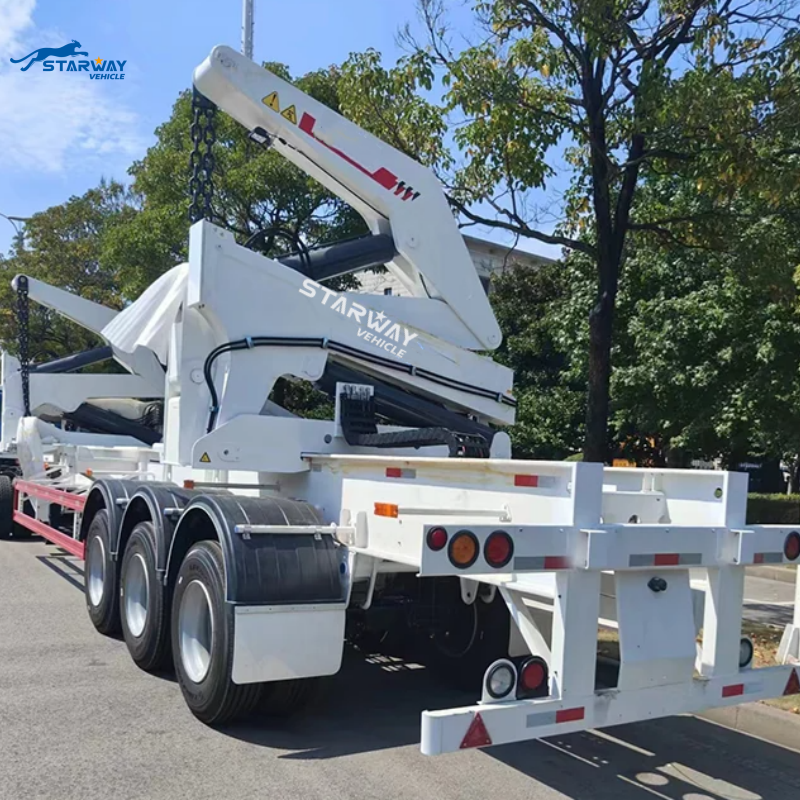

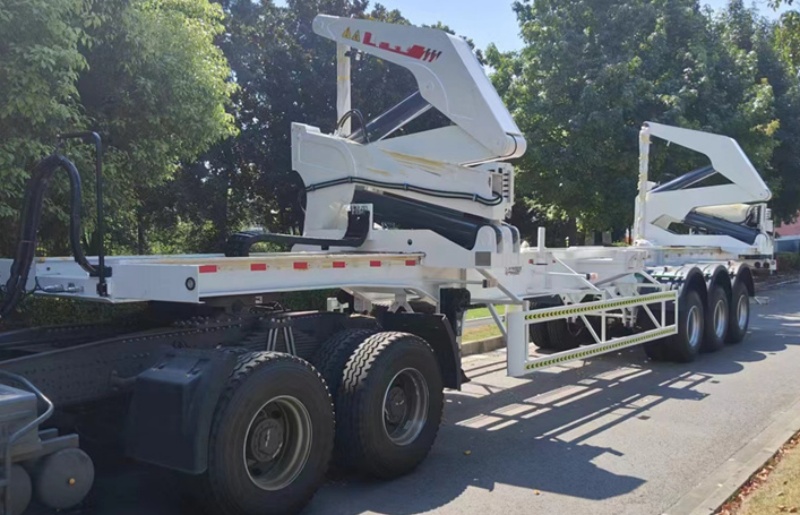

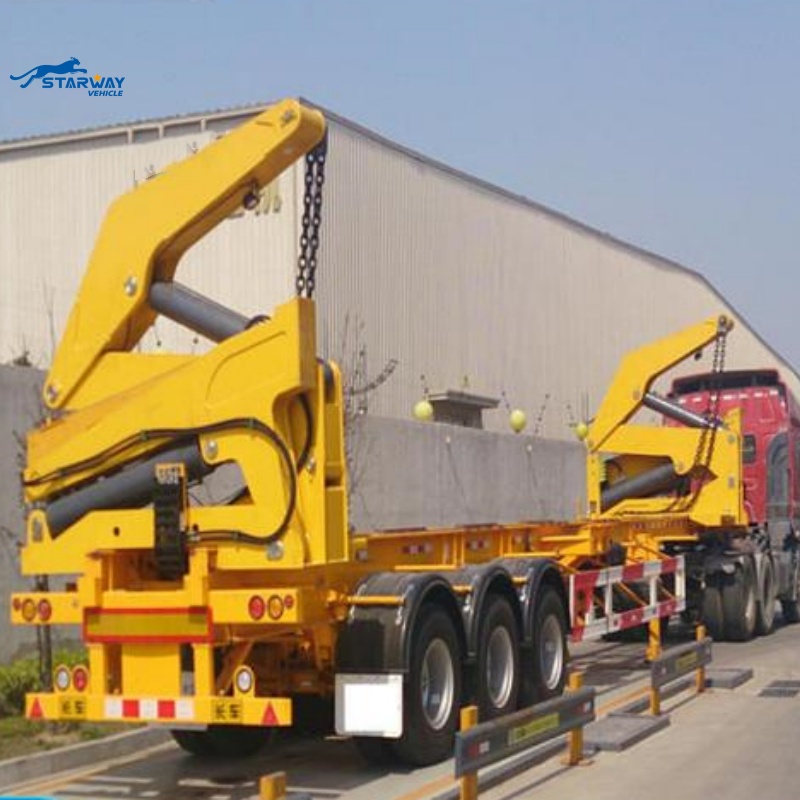

Starway 40ft container side loader is used to load and unload 40ft containers or 20ft containers.
Starway container side cranes make work flexible, save time and increase productivity to serve satisfied customers worldwide.We have adopted a container side crane of a world-famous brand
The specification of skeleton semi trailer ( for self loading crane )
Dimension :14100x2500x1450 (according to the crane )
Tyre :12R22.5 x12 or 315/80r22.5
Axles :Fuwa/Starway/BPW 13T mechanical suspension
Main beam :Height: 480mm, upper plate thickness is 16mm, middle plate thickness is 8mm, down plate thickness is 14mm; Material is Q235BCarbon Steel.
Side beam :16mm channel steel (Material is Q235B carbon steel)
Kinpin: Jost brand 2.0 or 3.5 inch welding type
Landing gear :Joat (two speed )
Emergency valve:Wabco brand
Twisit lock :12 sets
The specification of Side Crane
| Max. lifting capacity | kg | 37000 |
| Max.working range | mm | 4000 |
| Max. stabilizer outreach | mm | 3200 |
| Curb mass | kg | 14500 |
| Mass of sidelifter | kg | 7250 |
| Maximum gross mass | kg | 40000 |
| Outline dimension of semi-trailer(L×W×H) | mm | 14100×2500×4000 |
| Outline dimension of sidelifter(L×W×H) | mm | 1020×2500×2490 |
| Wheel base | mm | 8000+1350+1350 |
| Track(front axle/rear axle) | mm | 1820/1820/1820 |
| Front overhang / Rear overhang | mm | -/2370 |
| Approach angle/Departure angle | ° | -/13 |
