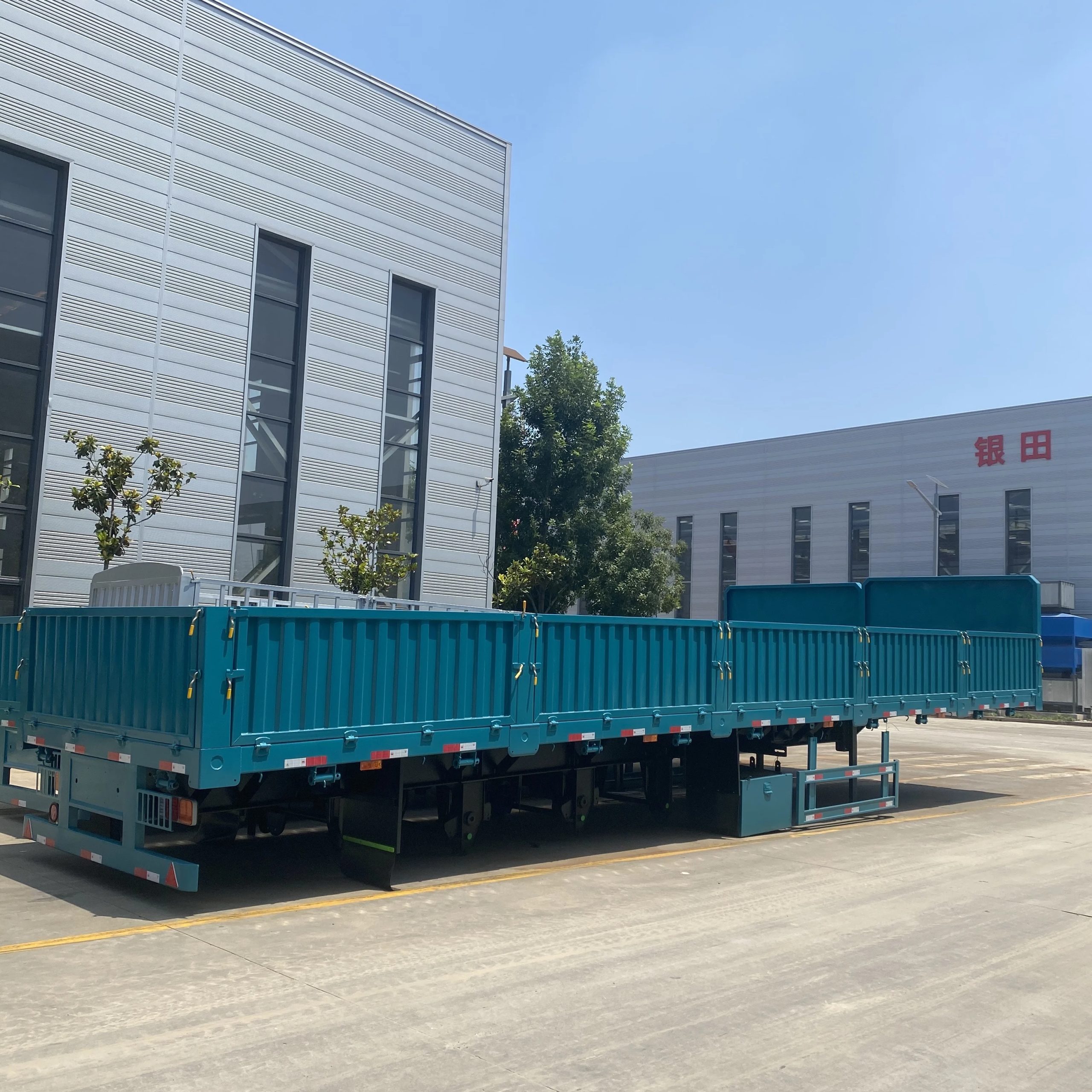

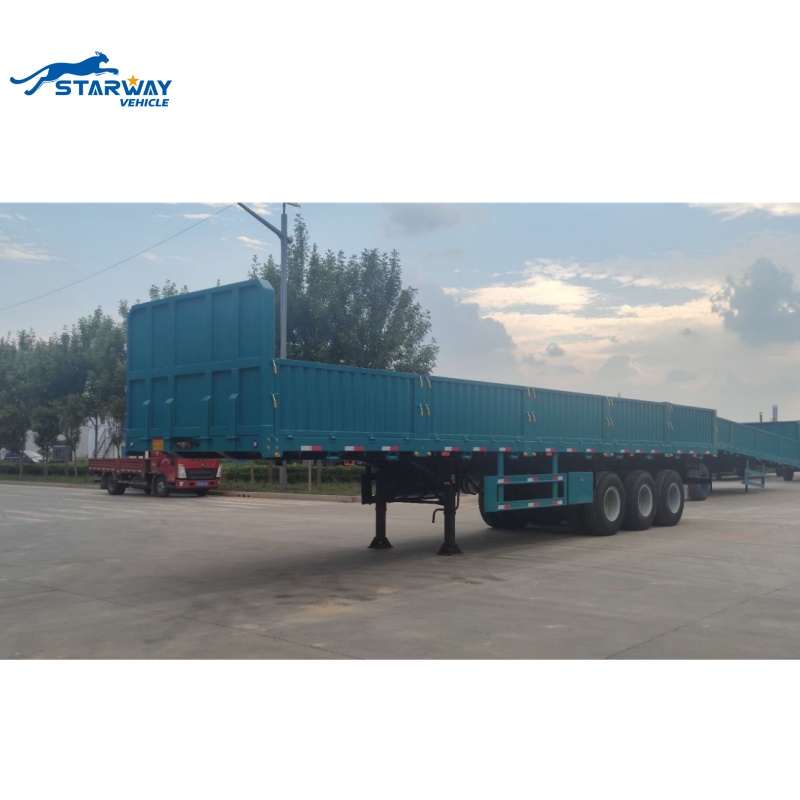

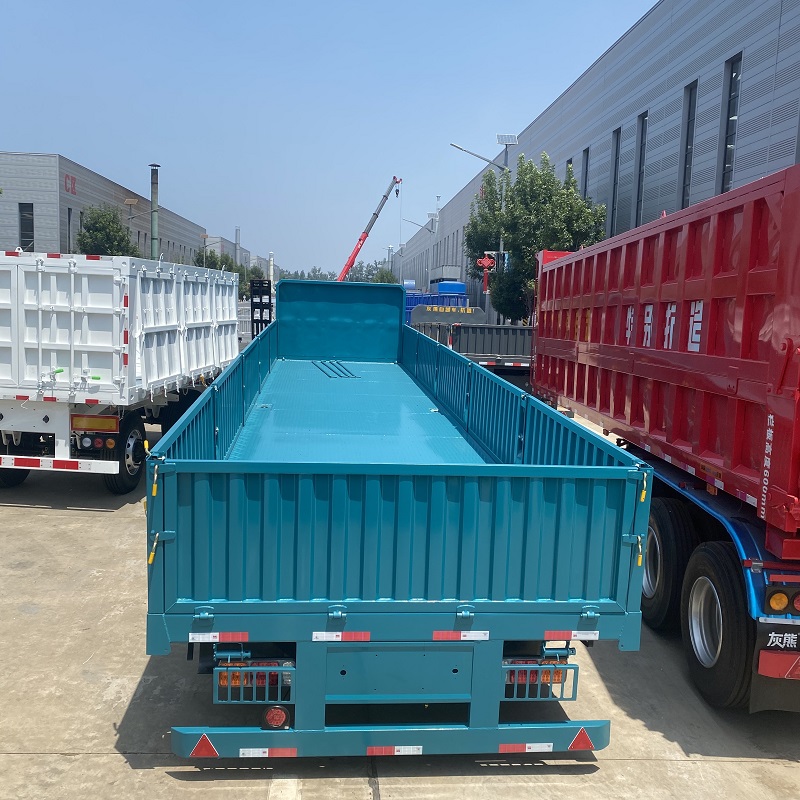

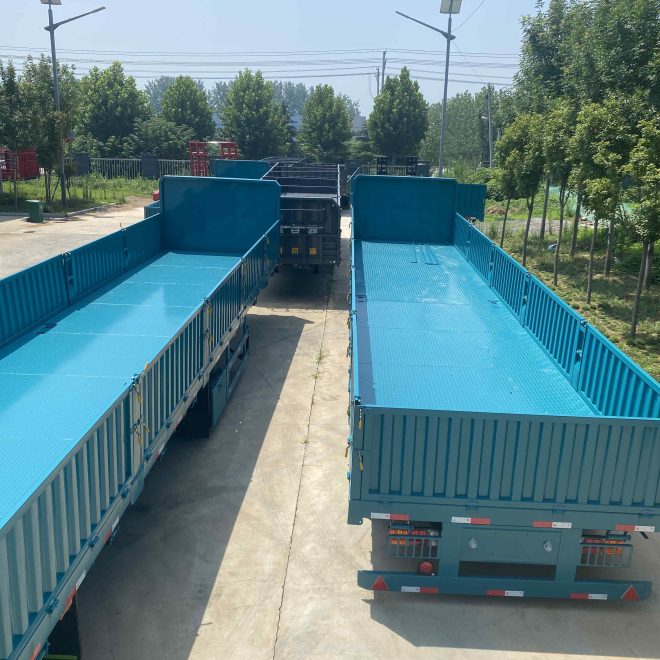

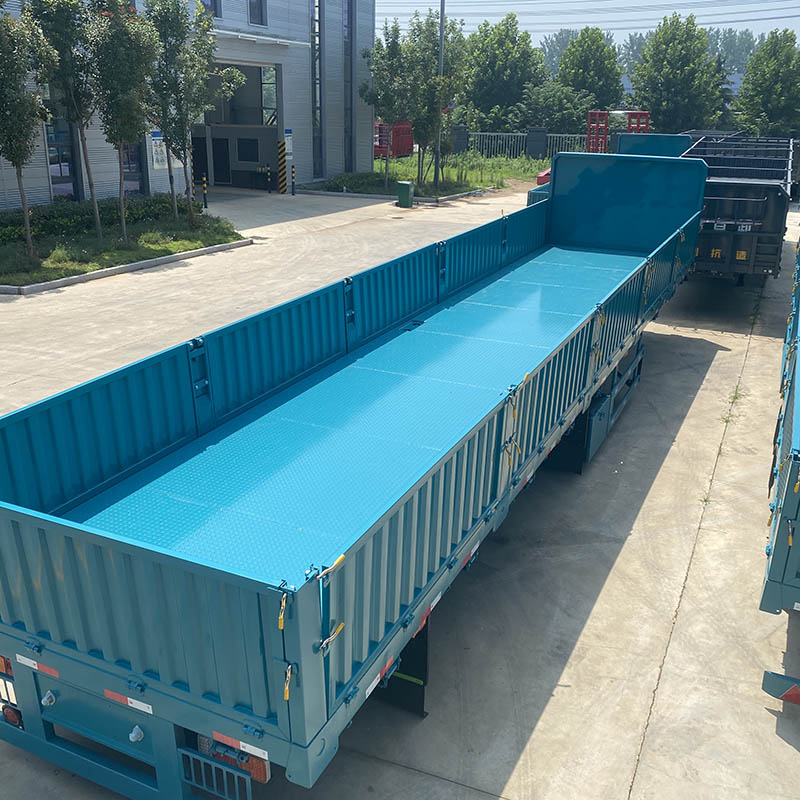

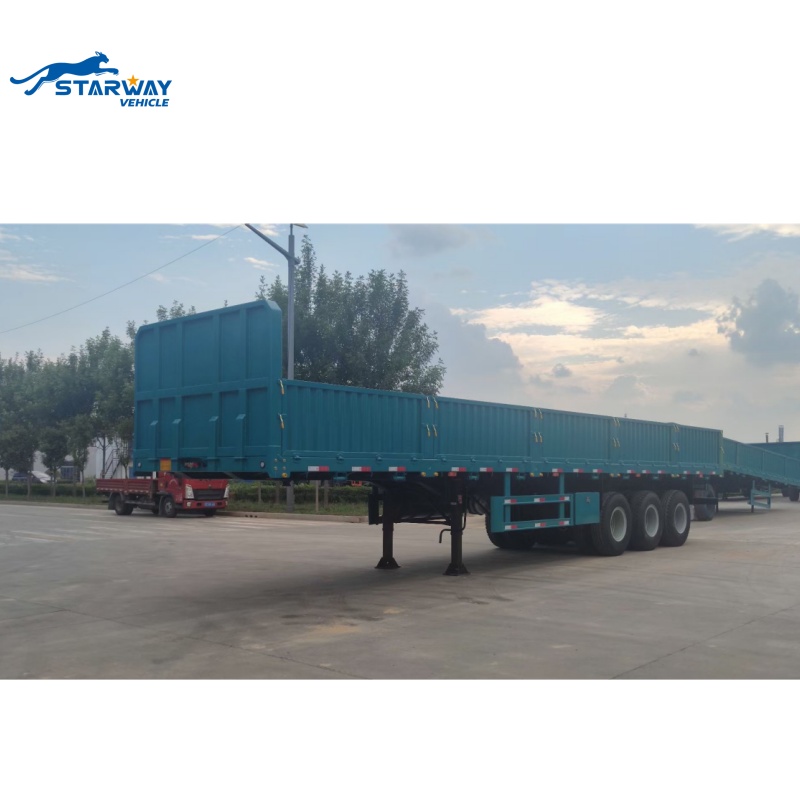

Starway 3 axles sidewall semi trailer ‘s length 13 meter, this sidewall can been removable when you transport container . It is an indispensable transportation tool for breakbulk cargo companies, shipping stations, and express delivery companies.
It can transport various goods, such as steel and wood. Vegetables, fruits, clothes, electrical appliances, and other daily necessities. Livestock semi-trailers can also be used to transport sheep, cattle and other animals.
Product Parameters:
Dimension :13000x2500x1580mm
Sidewall Height :600mm
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)
Through beam:#10 channel steel
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Features
Application Range: This sidewall semi-trailer has a wide range of uses and is mainly suitable for medium and long-distance transportation of medium and heavy and bulk goods. It has strong applicability
Main Beam Structure: The web height is 400mm-550mm, the manganese plate is welded, the longitudinal beam is welded by automatic buried welding, the frame is shot peened, the cross beam is inserted into the longitudinal beam and welded as a whole
Axle Configuration: We can offer 2-4 axles according to the length and loading capacity requirements ,the loading capacity of axles have 13/16/20 ton optional
Suspension System: we offer mechanical suspension or air suspension according your demand.
Container Twist Locks: 12 sets which can load 20x20ft or 40ft container after remove these detachable sidewall
Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
