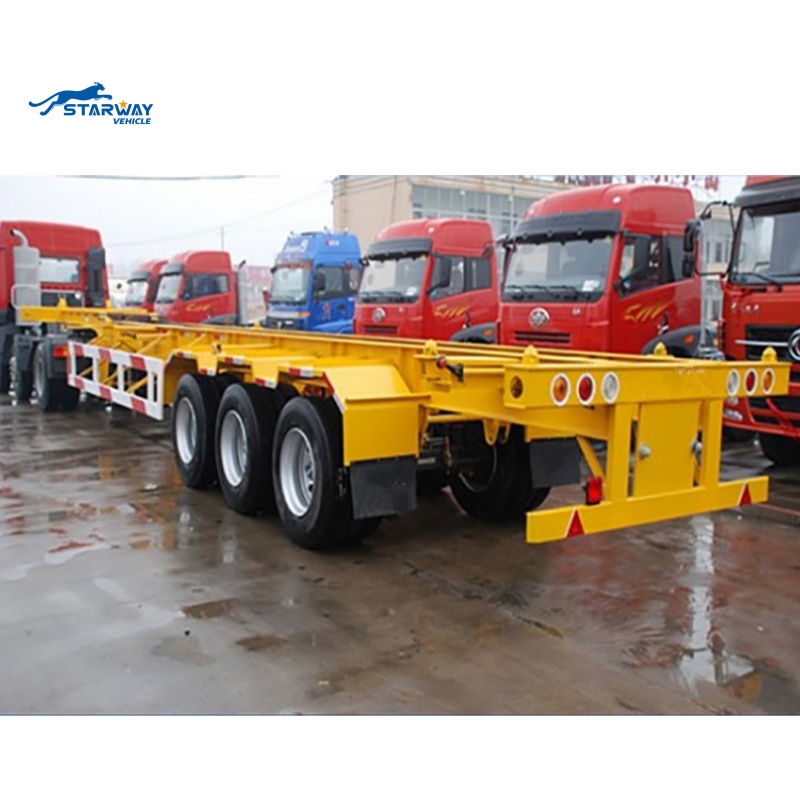

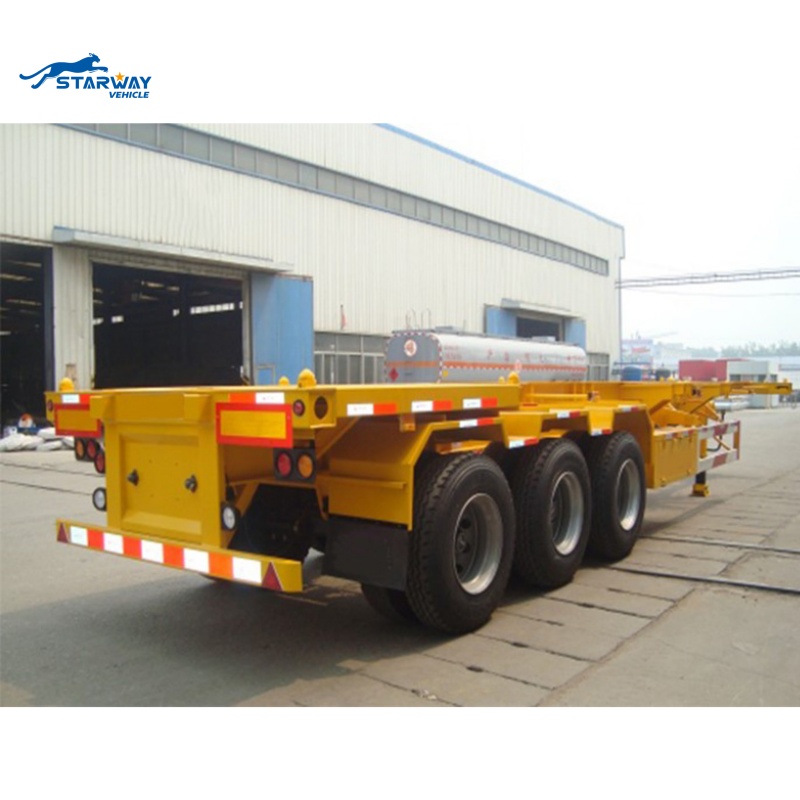

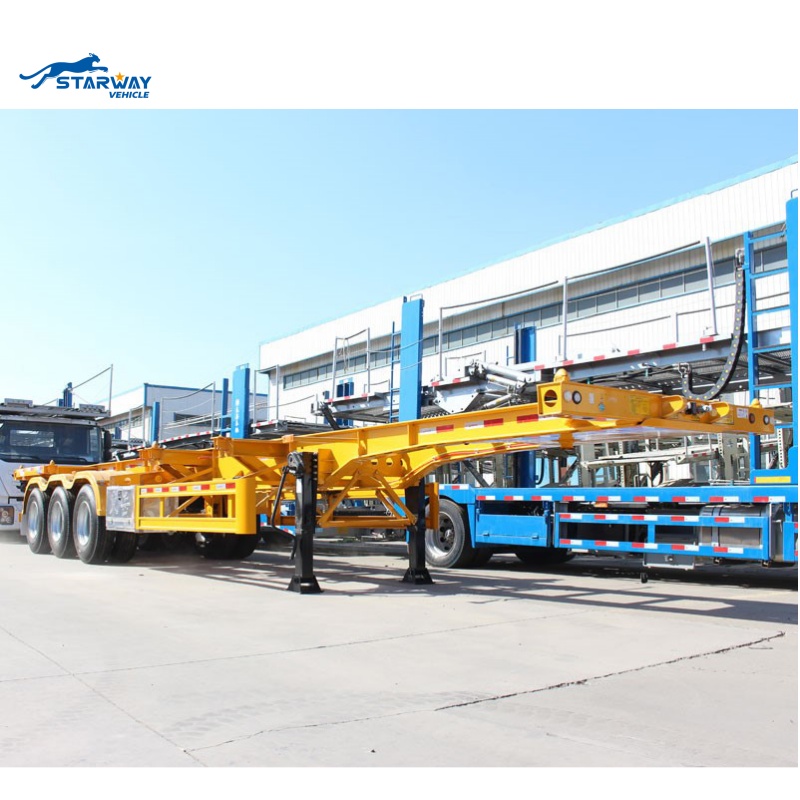

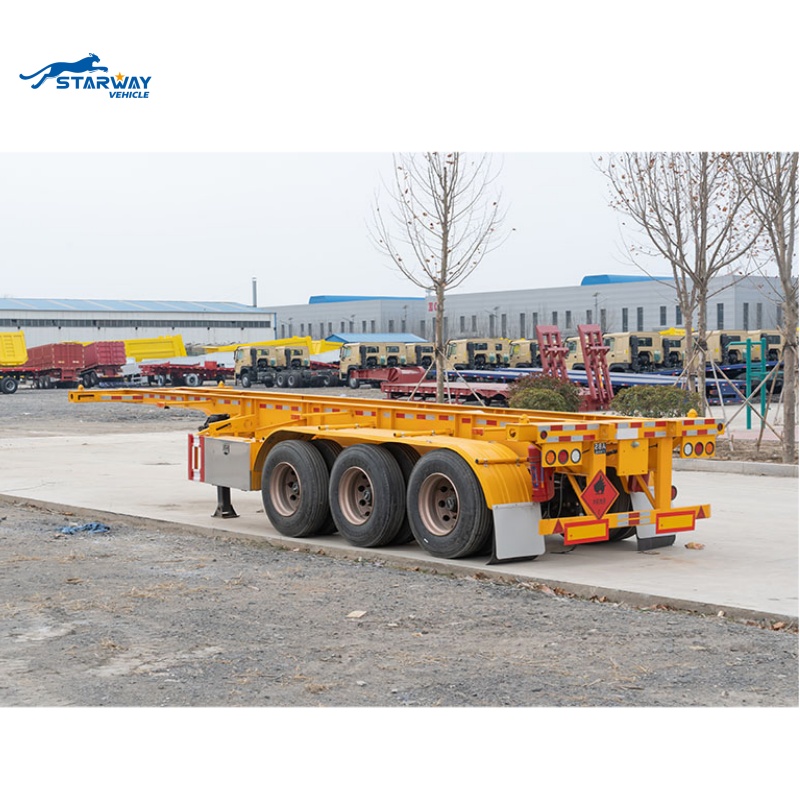

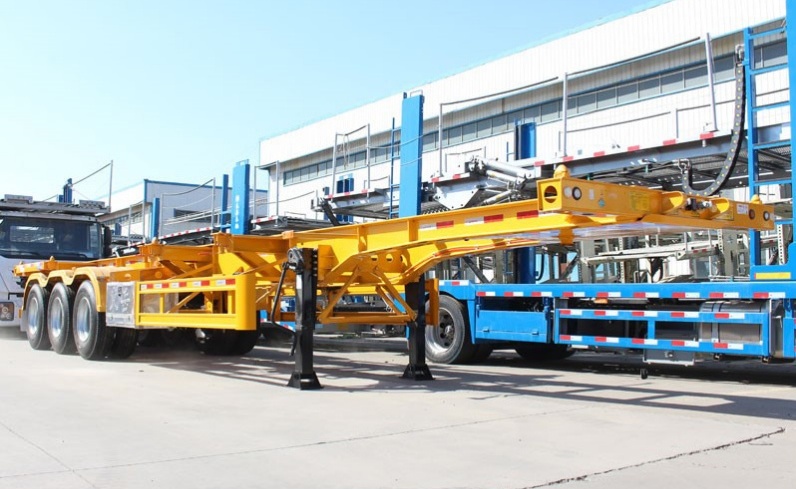

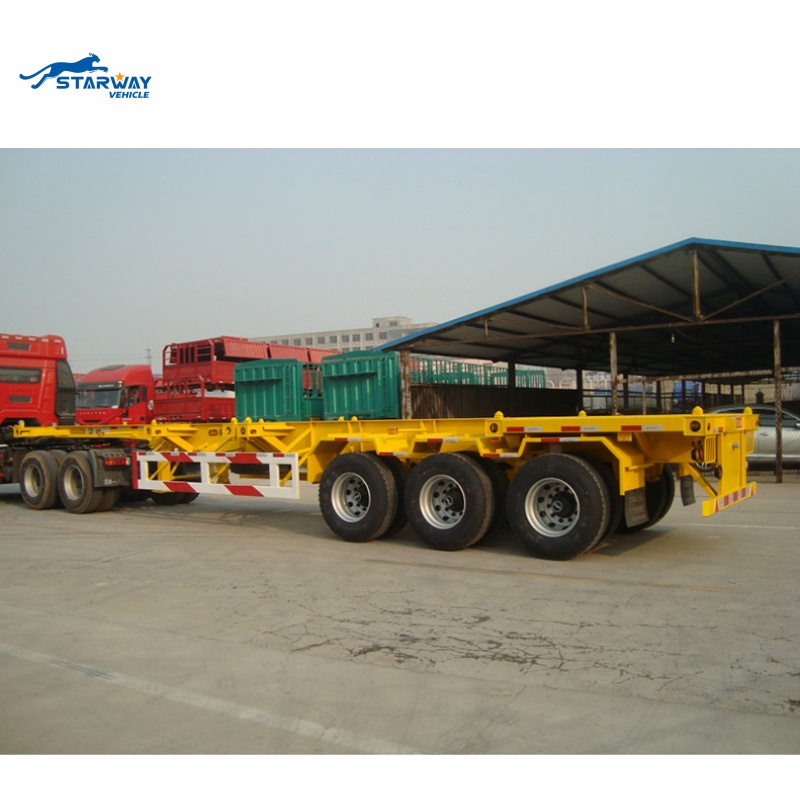

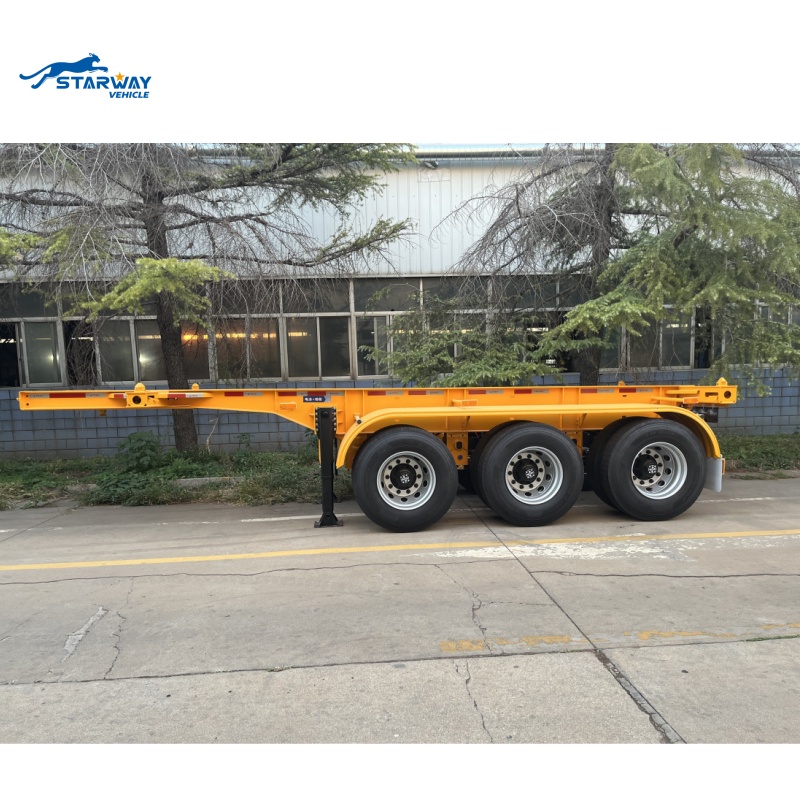

Starway 3 axles /2 axles 20ft, 40ft marine ISO container frame trailers are used for container transportation. The advantage over flatbed semi-trailers is that they are lighter than flatbed trailers. Starway can give you the perfect design. Provide custom-made semi-trailers of various types to give you the best value for money
The chassis is the main component of the semi-trailer and is welded from high-strength steel plates. Equipped with 12 container drill locks. Container side lifts can be installed on both the front and rear sides of the skeleton trailer to make loading and unloading more convenient.

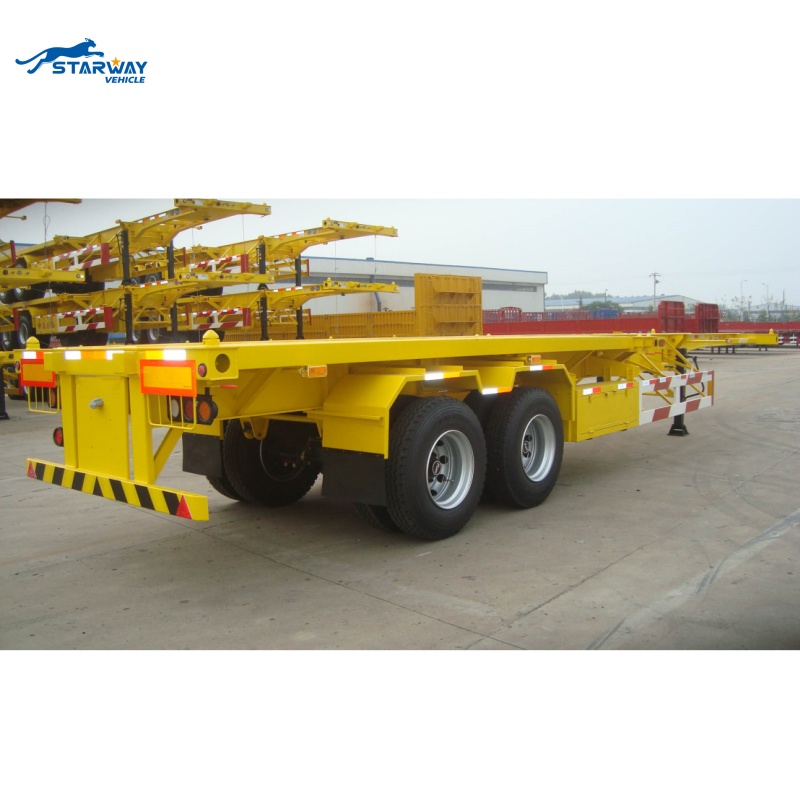

2 axles skeleton semi trailer

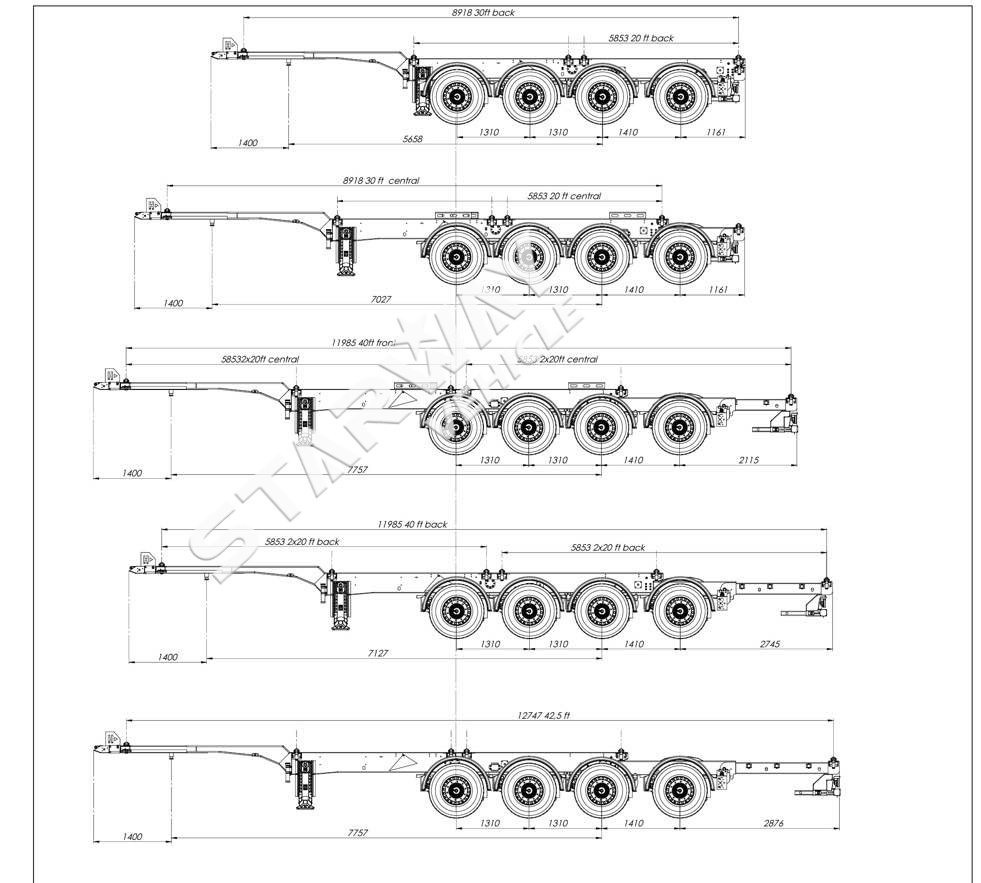

The drawing of 4 axles skeleton semi trailer
The main specification of starway skeleton semi trailer
Dimensions:12,500mm * 2,500mm * 1500mm ( Size can been Customizable)
Payload: 40 ton
Axles: 2/3/4 axles ,Fuwa /Starway
Main Beam Material: Q345/T700
Tires: 11.00R20/12R22.5/1200R20 * +12 tyre + one spare tyre
Suspension: Mechanical or Air Suspension
Leaf Springs: 90mm*16mm*10 pieces
Landing gear :28 ton

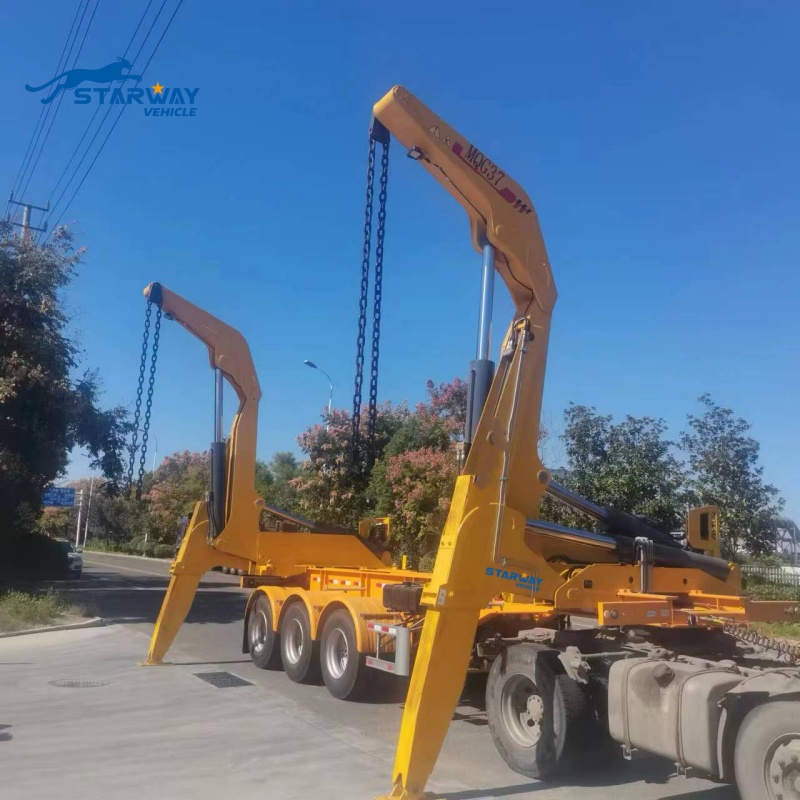

We offer many kinds of skeleton semi trailers. These semi trailers are not only used for steel and containers, but also it also can been side lifer which lift container
