Shandong Starway Vehicle Co.,Ltd

Flatbed Container Semi Trailer

Hot sale 4 axles 45ft flat bed Semi Trailer

Starway flatbed semi-trailer is used for transporting various containers and bulk cargo. It can be used to transport: one or two 20-foot containers, one 40-foot or 45-foot container. Specially designed models can carry one 48-foot or 53-foot container. Iron or wooden floor can be selected according to different needs, and rope hooks, rope tighteners, spare fuel tanks and other components can be added. Suitable for fleets that need to use one vehicle for multiple purposes

SKU 28164a2820b5 Category

4 axles flatbed semi-trailer is specially used for transporting various containers and some bulk goods. Can be reused for a long time and has sufficient strength.

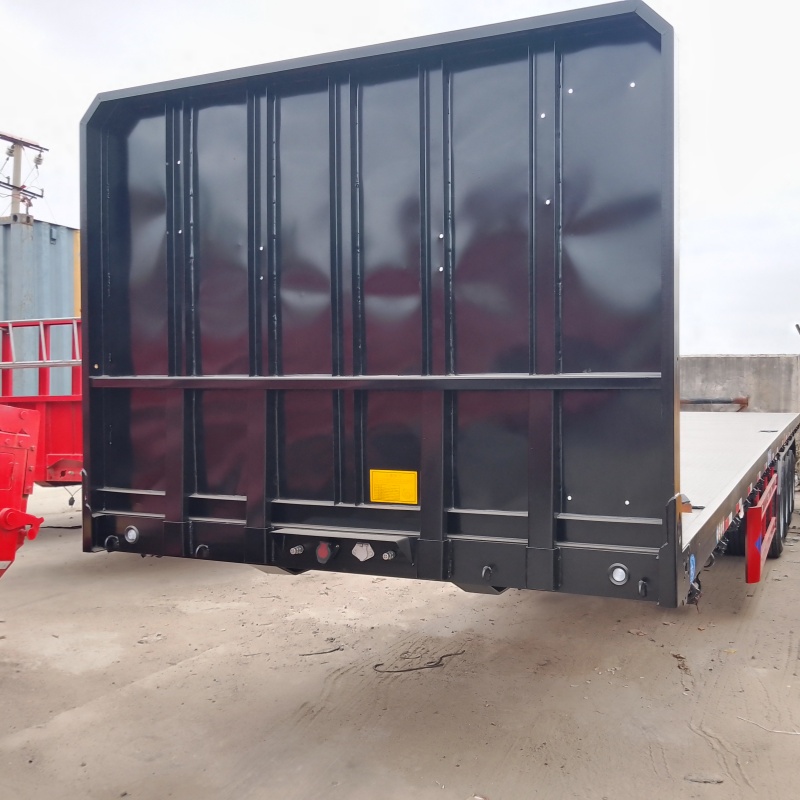

You can choose to add removable side walls, 12 container brick locks, and a load capacity of 80 tons
others ,Transporting 3 units together can save shipping costs.

Product Parameters:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking

Features
Application Range: Starway flatbed trailers are designed for efficient container handling. We can customize the trailer to suit your needs,if container transport or internal port use.

Main Beam Structure: The main beams Starway flatbed semi trailer is made by Q345 or T700 steel, providing a sturdy and durable frame that can loads heavy goods , even in bad road conditions.

Axle Configuration: We can offer 2-6 axles according to the length and loading capacity requirements ,the loading capacity of axles have 13/16/20 ton optional
Suspension System:  we offer mechanical suspension or air suspension according your demand.

Container Twist Locks: 12 sets which can load 20x20ft or 40ft container

Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
