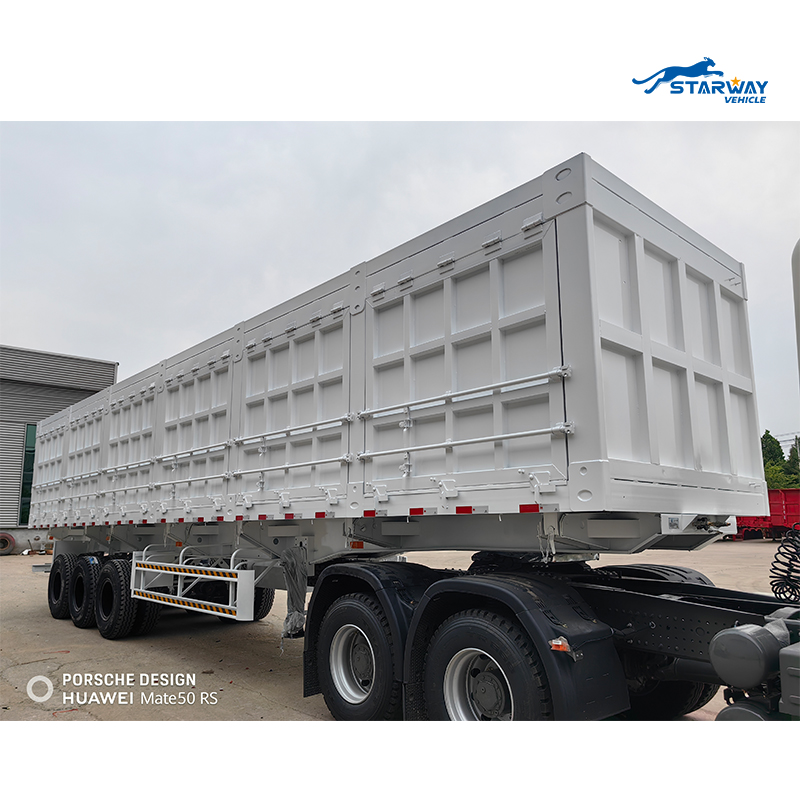

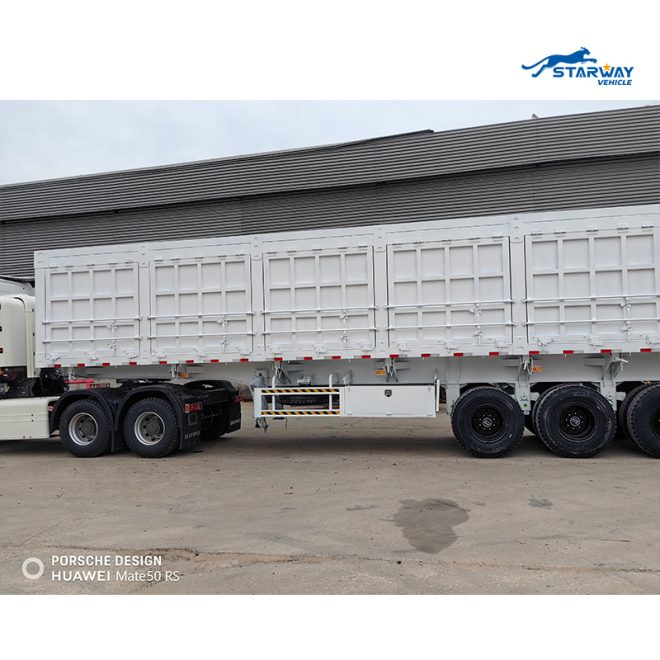

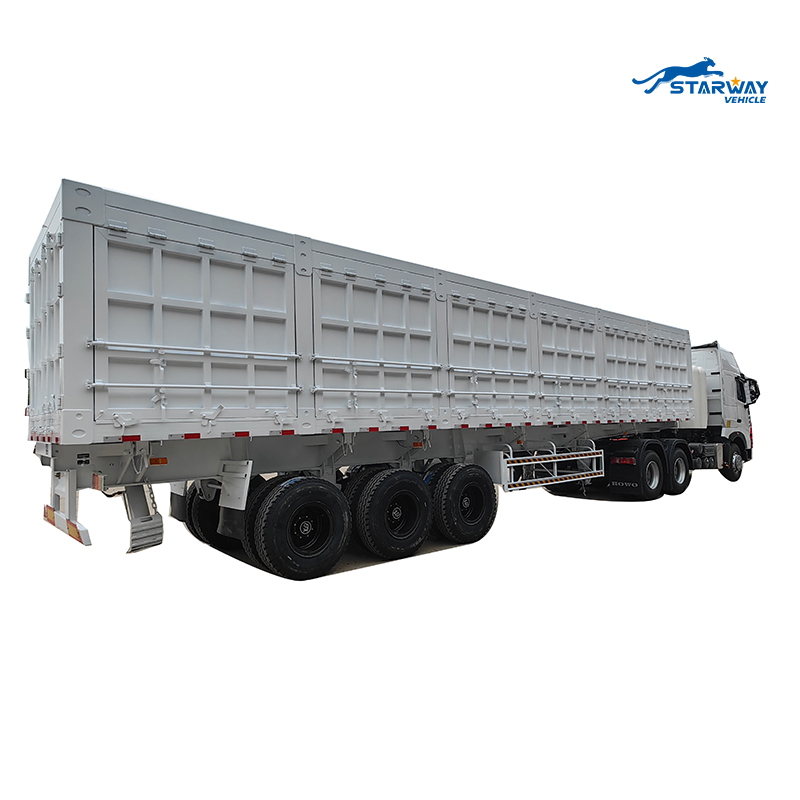

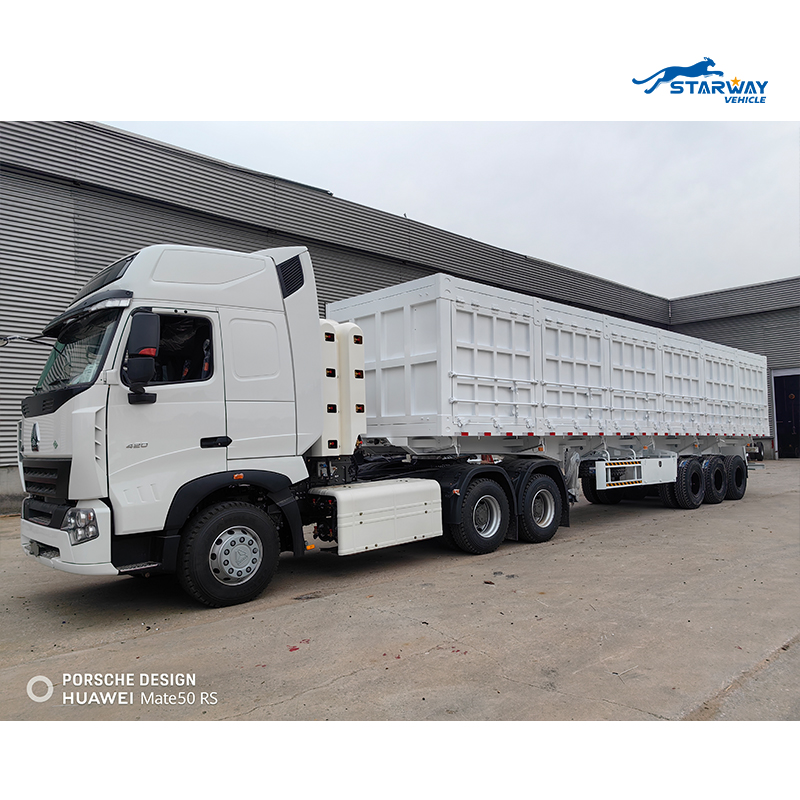

Starway 3 axles Side Dump Semi Trailer With HYVA hydraulic system，Comparing to rear dump semi trailer , it have big volume of bucket , It is Widely used to transport coal ,gravel , sand, stone,ore and other solid building materials or industrial raw materials.
Specifications
Dimensions: 13,000mm * 2,550mm * 3,800mm (Standard Dimensions, Customizable)
Payload:100 tons, Customizable
Axles: 3 axles * 25T, Customizable
Dump Style: Rear Dump, Customizable to Side Dump
Cylinder: HYVA (model depends on container length)
Main Beam Material: Q345/T700
Tires: 11.00R20/12R22.5 * 8/12/16 pieces
Suspension: Mechanical or Air Suspension
Leaf Springs: 90mm*16mm*10 pieces
Landing Gear: 28T, Two-speed, JOST
King Pin: #50(2″)/#90(3.5″), JOST/other brands
Additional Customizable Options: Paint process, ABS, Reflective Tape, LED lights, etc.
