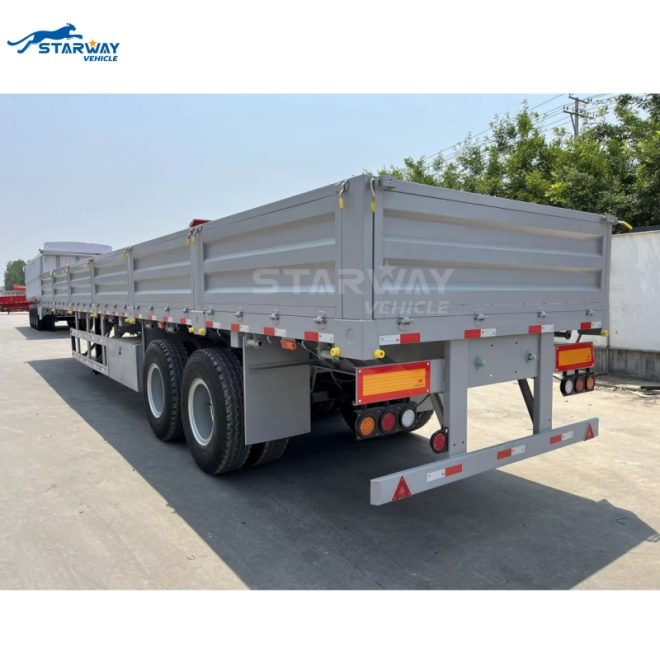

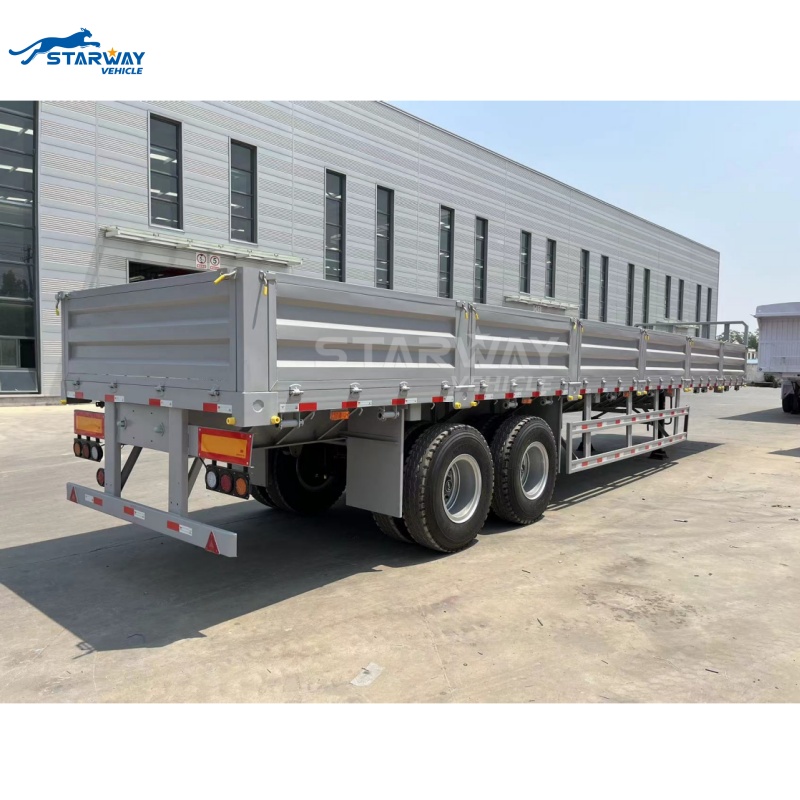

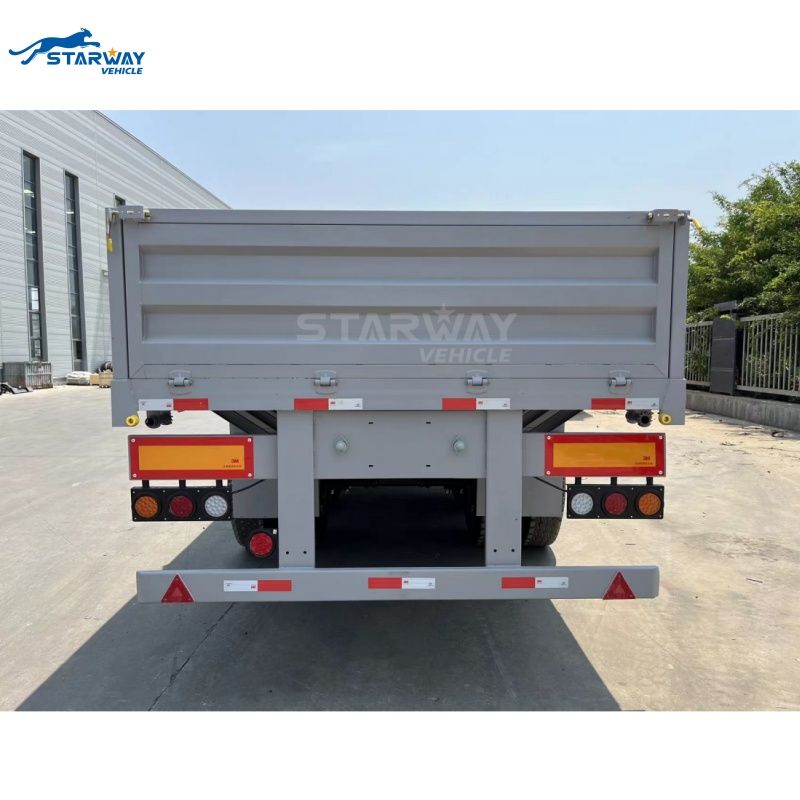

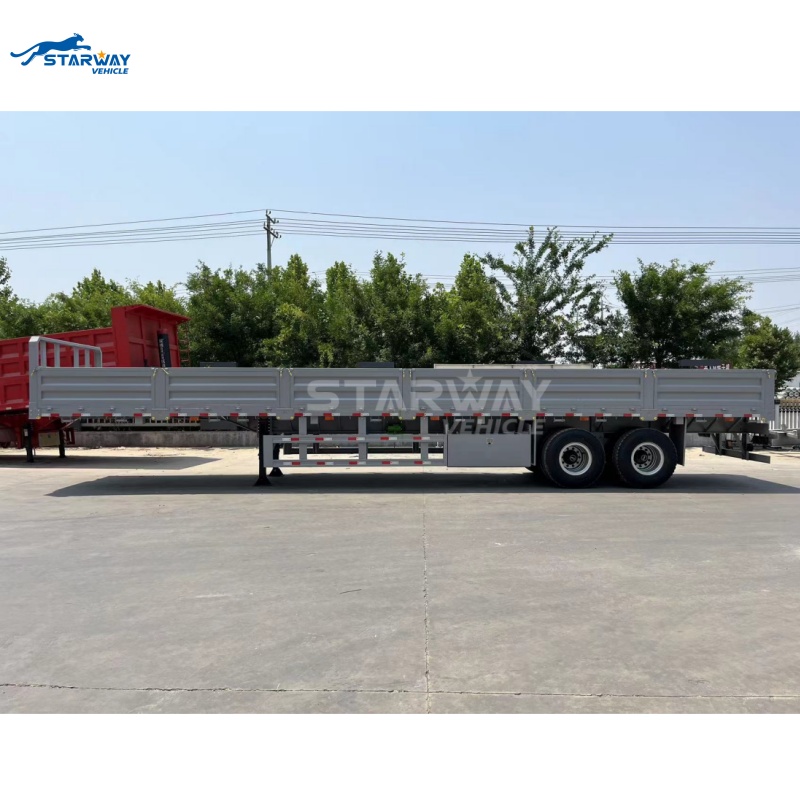

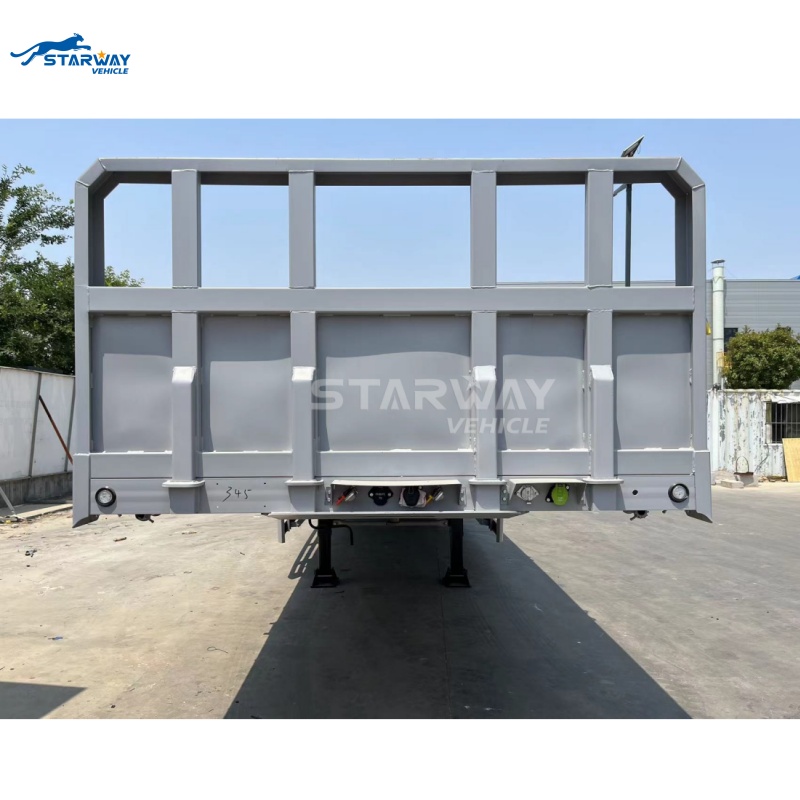

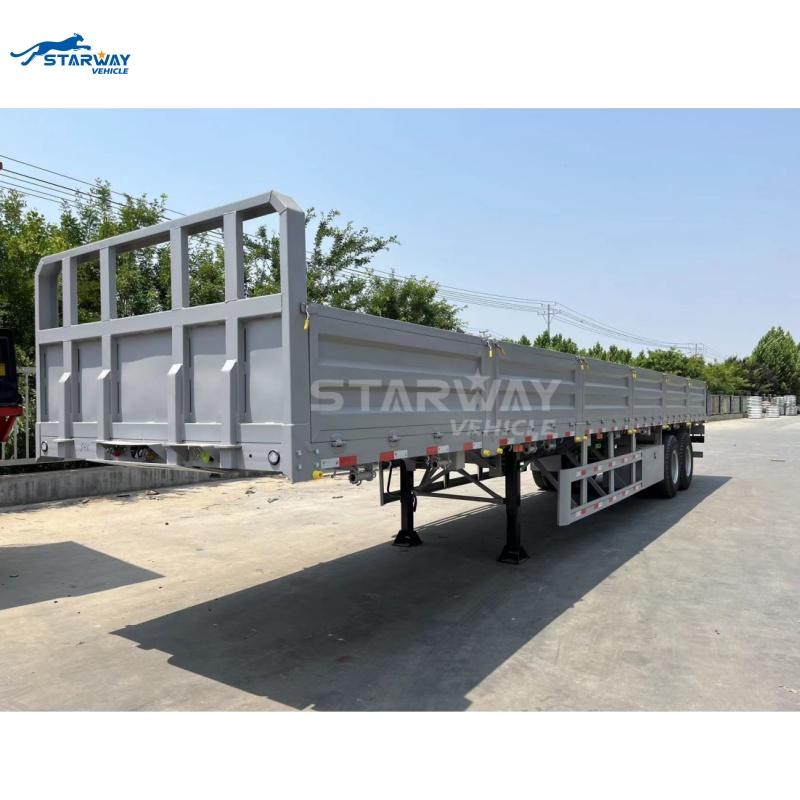

Starway 2-axle sidewall semi-trailer can carry 40 tons of cargo. The trailer is specially customized according to the needs of Zambian customers.
The total length is 40ft. The sidewalls on both sides can be disassembled. Transporting three units together can save freight.
Product Parameters:
Dimension :13000x2500x1580mm
Sidewall Height :600mm
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)
Through beam:#10 channel steel
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Features
Scope of application: This side wall semi-trailer has a wide range of uses and is mainly suitable for medium and long-distance transportation of medium, heavy and bulk cargo. It has strong applicability
Main beam structure: web height 400mm-550mm, manganese plate welding, longitudinal beams using automatic submerged arc welding, frame shot peening, cross beams inserted into longitudinal beams and integrated welding
Axle configuration: Depending on length and load capacity requirements, we can provide 2-4 axles. Axle loads are 13 tons, 16 tons, and 20 tons.
Suspension System: We offer mechanical suspension or air suspension depending on your needs.
Container Twist Locks: Set of 12, these removable side walls can be removed to load 20x20ft or 40ft containers
Application and after-sale services:
Starway vehicle company promise two-year warranty period, during this period, under normal use if there is damage, we will provide free new spare parts
Main beam : 2 year
Suspension : one year
Axles /Axle bearing : one year
Breaking system : one year
Landing gear /Kingpin:one year
Tyre : 6 month
