Starway Lowbed semi-trailers also carry a wide range of cargo and are suitable for transporting a variety of mechanical equipment, construction equipment, large tanks, power station equipment and various steel materials. The series of semi-trailers have lowbed, concave beam and exposed tire structures
.
The longitudinal beams are straight or gooseneck. The frame is stepped and the longitudinal beam cross-section is I-shaped. It has the characteristics of high rigidity and high strength. The main plane of the frame cargo platform is low, ensuring the stability of transportation, and is suitable for carrying various types of construction machinery, large equipment and steel materials. It adopts 3 axles balanced active rigid suspension, and a mass balance block is installed between the front and rear leaf springs, which can change the deflection of the front and rear leaf springs in equal amounts, and use the rear axle force balance, etc. It has a wide range of uses and fast efficiency. The entire vehicle uses advanced computer design software to optimize the design and make it flexible. The frame load-bearing surface is designed according to user requirements to meet the transportation of various special goods. T

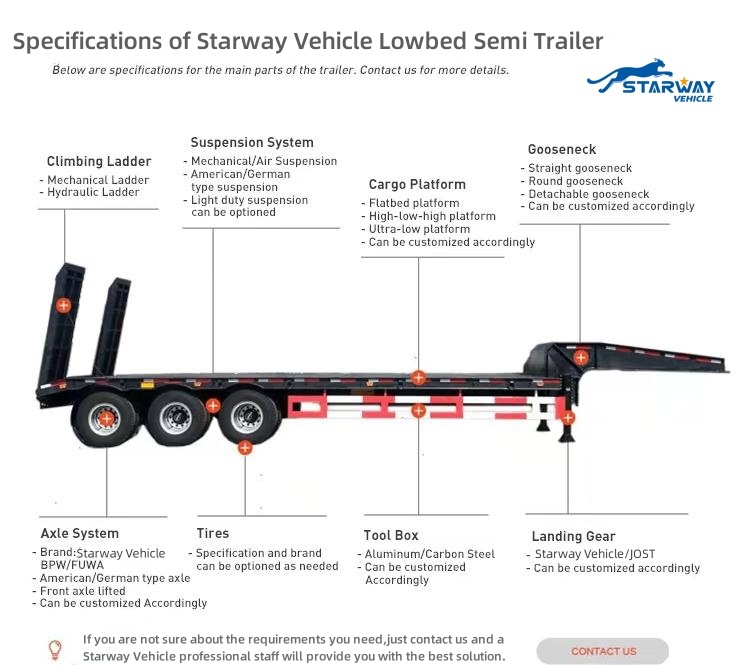

Starway Vehicle produces heavy-duty gooseneck lowbed semi-trailers, 9-18 meter
Dimensions: 13000mm*3000mm*18000mm (Standard Dimensions, Customizable)
Main Beam Material: T700
Axles: 3 axles or multi-axle,
Load Capacity:60 tons, Customizable
Ladders: Mechanical spring
Suspension: Heavy-duty Mechanical Suspension
Leaf Springs: 90mm*13mm*10pcs/90mm*16mm*10pcs
Tires: 12R22.5/8.25R20
King Pin: #50(2″)/#90(3.5″), JOST/other brands, replaceable
Landing Gear: 28 tons, two-speed, JOST/other brands
Paint: Electrophoretic paint for corrosion resistance
Other Customizable Options: Rims, ABS, LED lights, reflective strips, etc.
More details ,please contact us , Whatsapp number : +8618364783601
