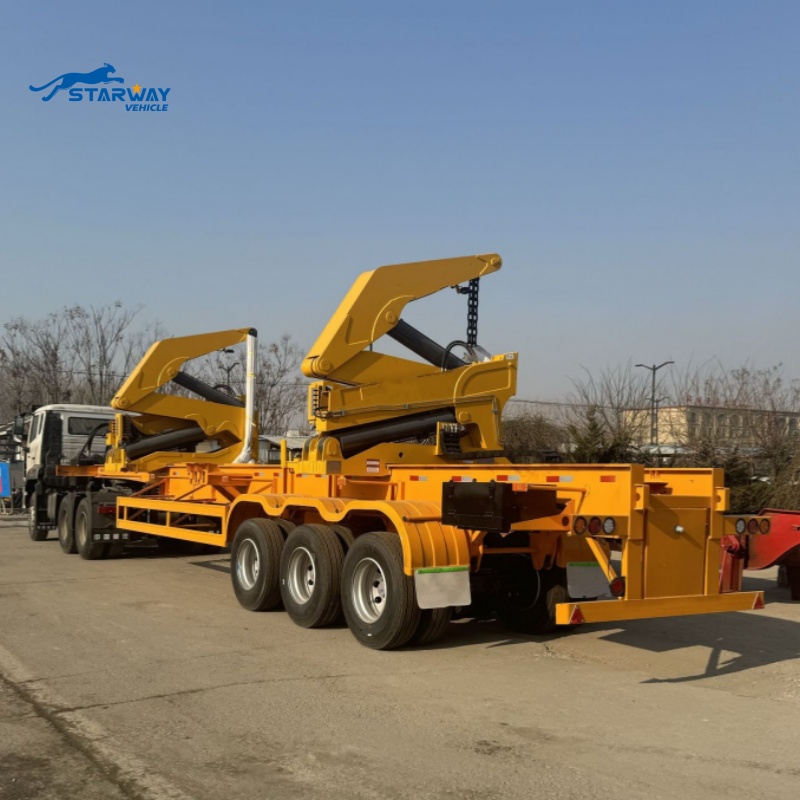

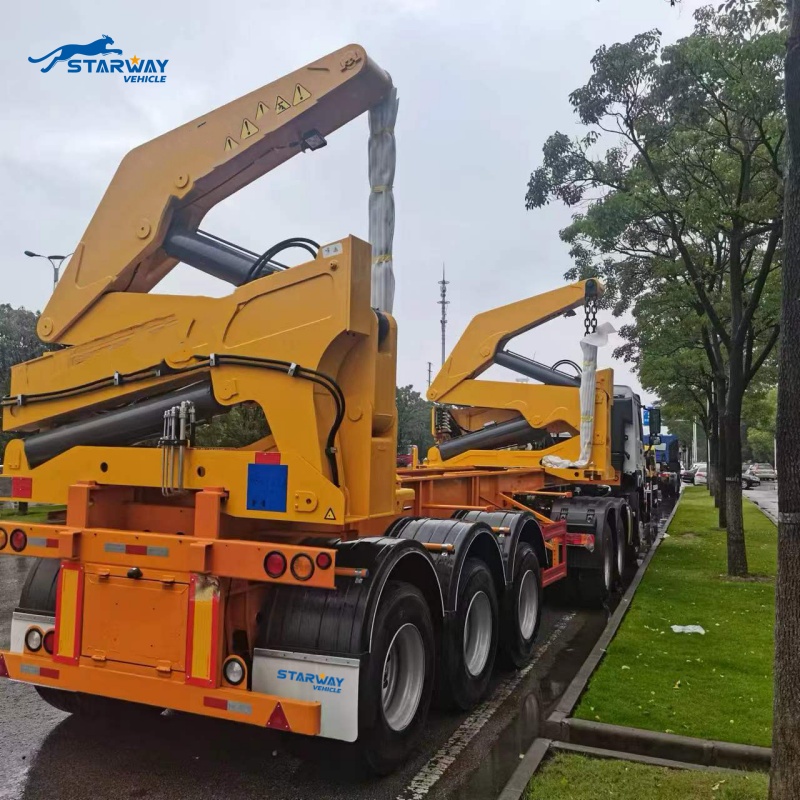

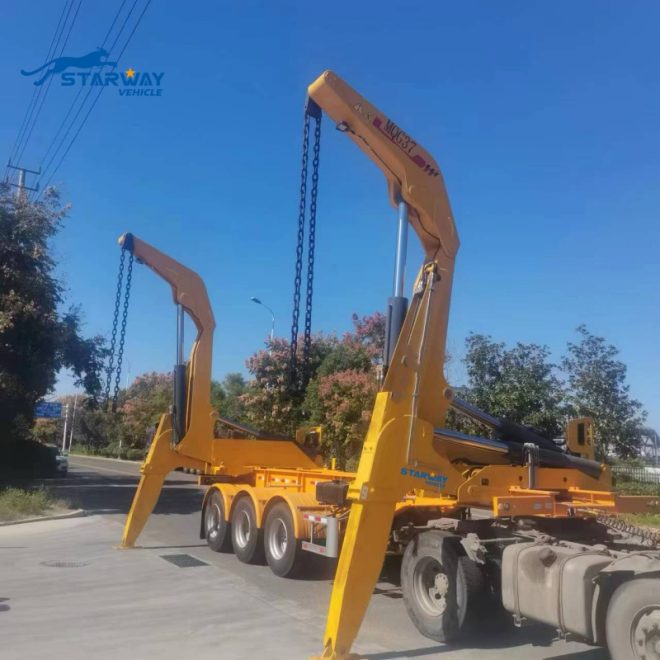

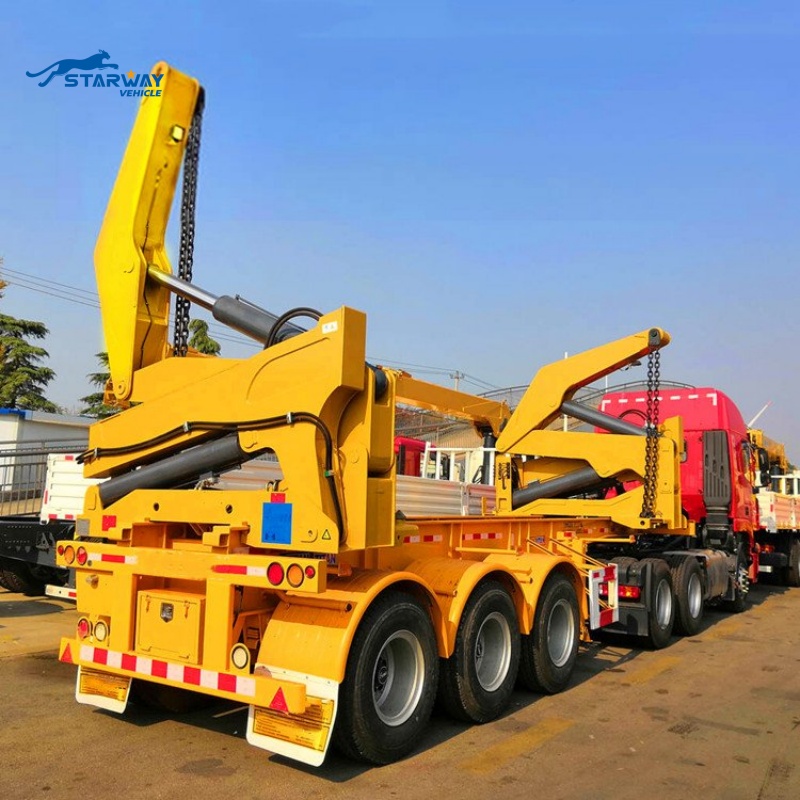

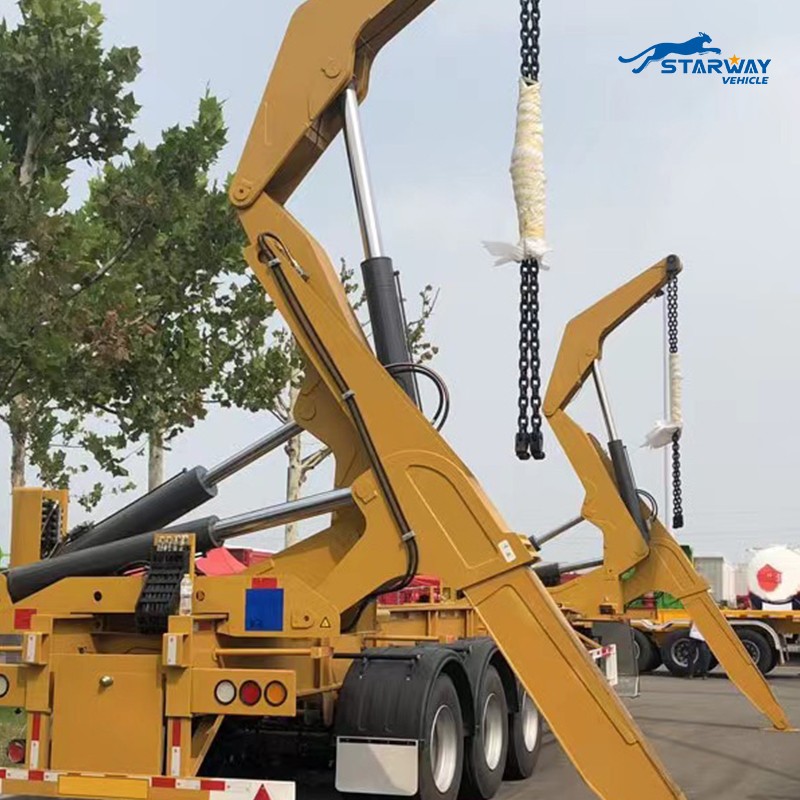

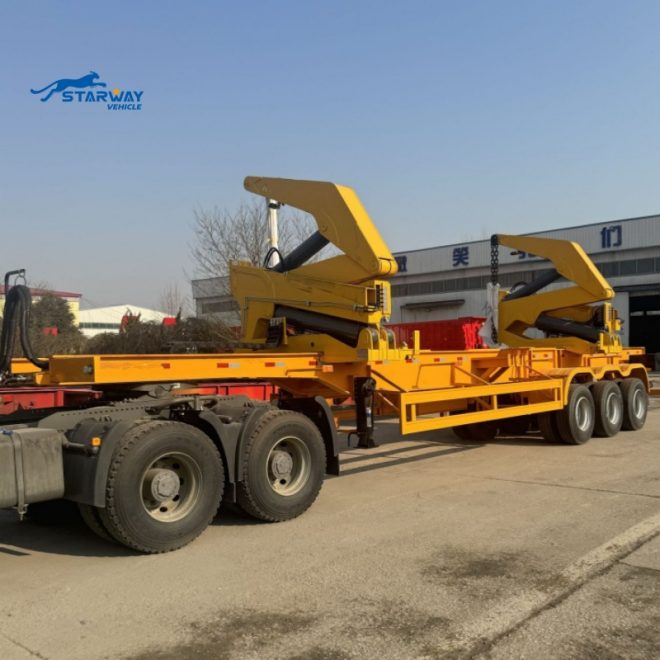

Starway container side container lifter semi trailer which can complete various operating functions such as container self-loading and unloading, vehicle-to-vehicle transfer, etc. with one machine. It has the characteristics of strong lifting capacity, long operating distance, wide application range, good versatility, and strong accompanying loading and unloading support capabilities, which can meet the needs of The lifting requirements of containers at different locations are widely used in container distribution centers such as container logistics, port freight transfer stations, railway container handling stations, warehouses, and customs departments.
The specification of skeleton semi trailer ( for self loading crane )
Dimension :14100x2500x1450 (according to the crane )
Tyre :12R22.5 x12 or 315/80r22.5
Axles :Fuwa/Starway/BPW 13T mechanical suspension
Main beam :Height: 480mm, upper plate thickness is 16mm, middle plate thickness is 8mm, down plate thickness is 14mm; Material is Q235BCarbon Steel.
Side beam :16mm channel steel (Material is Q235B carbon steel)
Kinpin: Jost brand 2.0 or 3.5 inch welding type
Landing gear :Joat (two speed )
Emergency valve:Wabco brand
Twisit lock :12 sets
The specification of Side Crane
| Max. lifting capacity | kg | 37000 |
| Max.working range | mm | 4000 |
| Max. stabilizer outreach | mm | 3200 |
| Curb mass | kg | 14500 |
| Mass of sidelifter | kg | 7250 |
| Maximum gross mass | kg | 40000 |

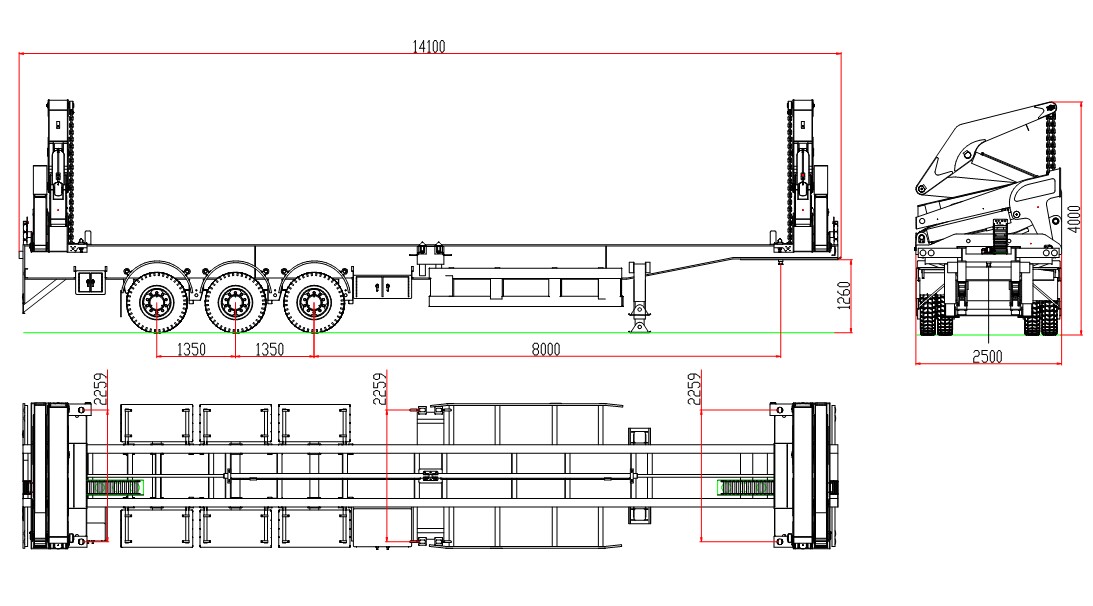

| Outline dimension of semi-trailer(L×W×H) | mm | 14100×2500×4000 |
| Outline dimension of sidelifter(L×W×H) | mm | 1020×2500×2490 |
| Wheel base | mm | 8000+1350+1350 |
| Track(front axle/rear axle) | mm | 1820/1820/1820 |
| Front overhang / Rear overhang | mm | -/2370 |
| Approach angle/Departure angle | ° | -/13 |
