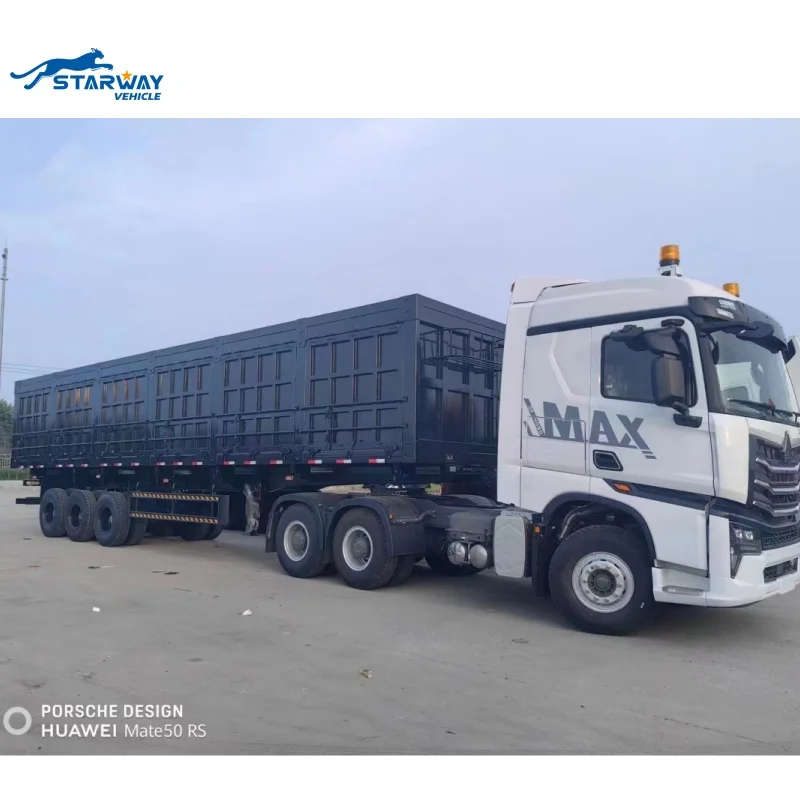

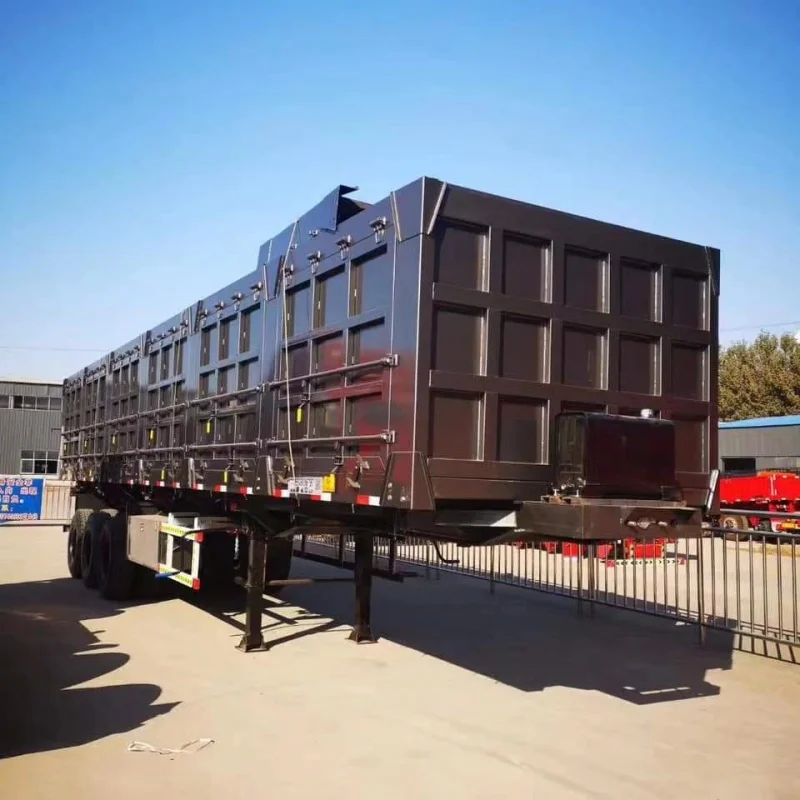

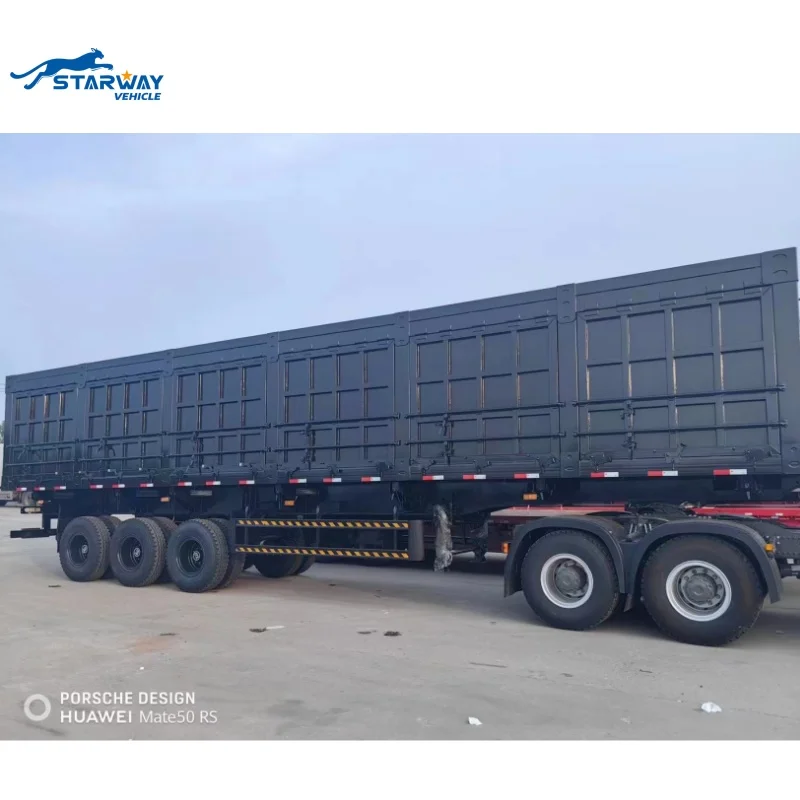

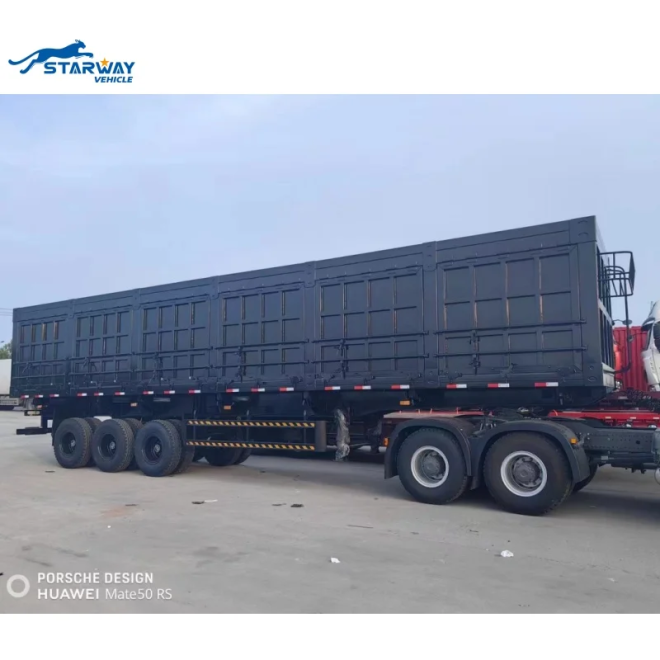

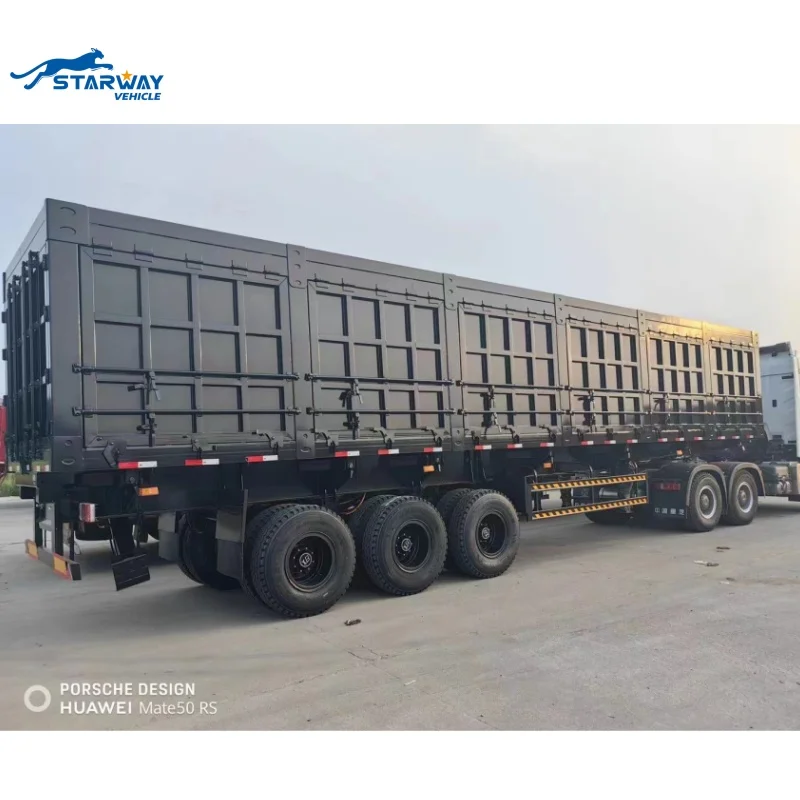

3 Axles 100 ton side dump semi trailer for sale
From the perspective of lifting methods, dump trucks can be mainly divided into rear-turning type and side-turning type. Today, we mainly focus on the characteristics and advantages of Side dump semi-trailers.
In the past, rear-turning dump trucks were more common, but this type of dump truck had higher requirements for the height of the lifting ram. The height of the lifting ram is usually restricted by the length of the carriage. The longer the carriage, the longer the ram required. However, the design of the ejector rod is progressive and the top is relatively slender, which poses certain challenges to lateral stability.
In order to overcome this shortcoming, rollover semi-trailers came into being. Its biggest advantage is that the height requirements for the lifting ejector are lower, sometimes even less than half the height of the flip-back ejector. The top rods of roll-over semi-trailers are usually evenly distributed in a straight line at the bottom of the cargo compartment, which not only provides strong lifting force, but also improves lateral stability. Especially in semi-trailers with long cargo compartments, side-turn dumping has more advantages.
Specifications
Dimensions: 13,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)
Payload:100 tons-150 ton
Main beam : Up20/Middle 1mm/Down 20mm
Axles: 3 axles *25 T, Customizable
Dump Style: Rear Dump, Customizable to Side Dump
Cylinder: HYVA (model depends on container length)
Main Beam Material: Q345/T700
Tires: 11.00R20/12R22.5/1200R20 * 8/12/16 pieces
Suspension: Mechanical or Air Suspension
Leaf Springs: 90mm*16mm*10 pieces
Landing Gear: 28T, Two-speed, JOST
King Pin: #50(2″)/#90(3.5″), JOST/other brands
Additional Customizable Options: Paint process, ABS, Reflective Tape, LED lights, etc.
