Structure and features
The main feature of the Rear dump semi-trailer is that it has a freely flippable cargo box, which makes loading and unloading cargo faster and more efficient.
Its structure is complex and precise, requiring the coordinated work of multiple components to achieve the back-turning function.
In terms of vehicle appearance, rear-turning dump semi-trailers usually use high-strength steel and reasonable appearance design, giving them better structural stability and aesthetic appearance.
2.Usage scenarios
Rear dump semi-trailers are mainly used for cargo transportation in construction sites, mining, construction and other industries., It transports gravel.sand ,stone and so on
Its quick unloading function makes it useful in situations where frequent loading and unloading of goods is required.
At the same time, due to the particularity of the dumping function, the rear-turning dump semi-trailer can also be operated in a relatively narrow construction site environment and has strong applicability and flexibility.

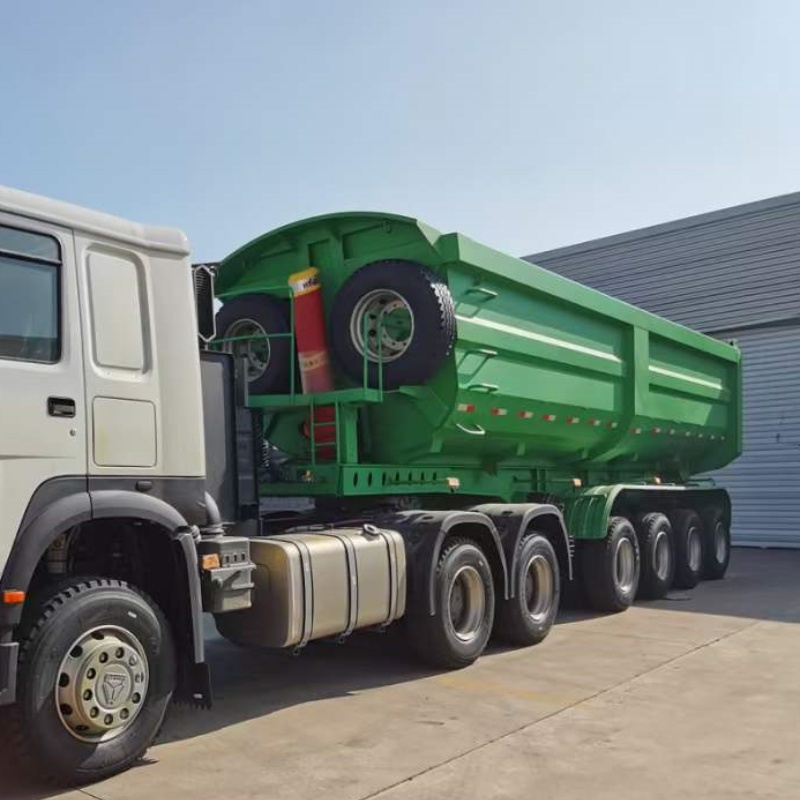

Specifications of 4 axles dump trailer
Dimensions: 9,800mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)
Payload:60-80 ton
Main beam : Up20/Middle 1mm/Down 20mm
Axles: 4 axles *13 T
Dump Style: Rear Dump, ( Side Dump is available）
Cylinder: HYVA (optional)
Main Beam Material: Q345/T700
Tires: 11.00R20/12R22.5/1200R20 * +16 tyre + one spare tyre
Suspension: Mechanical or Air Suspension
Leaf Springs: 90mm*16mm*10 pieces
Landing Gear: 28T, Two-speed, JOST
King Pin: #50(2″)/#90(3.5″), JOST/other brands
Additional Customizable Options: Paint process, ABS, Reflective Tape, LED lights, etc.
