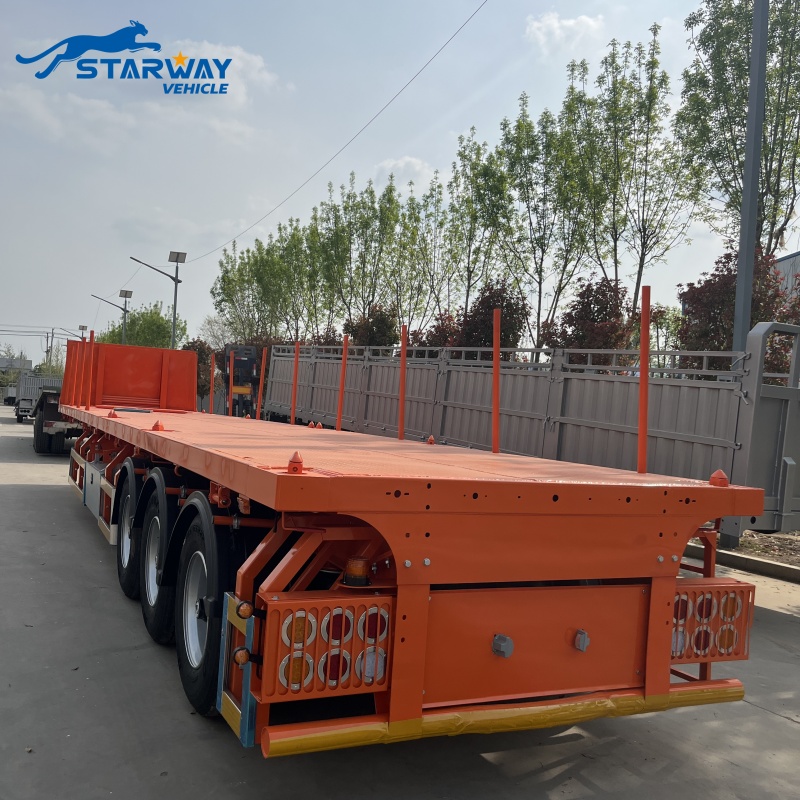

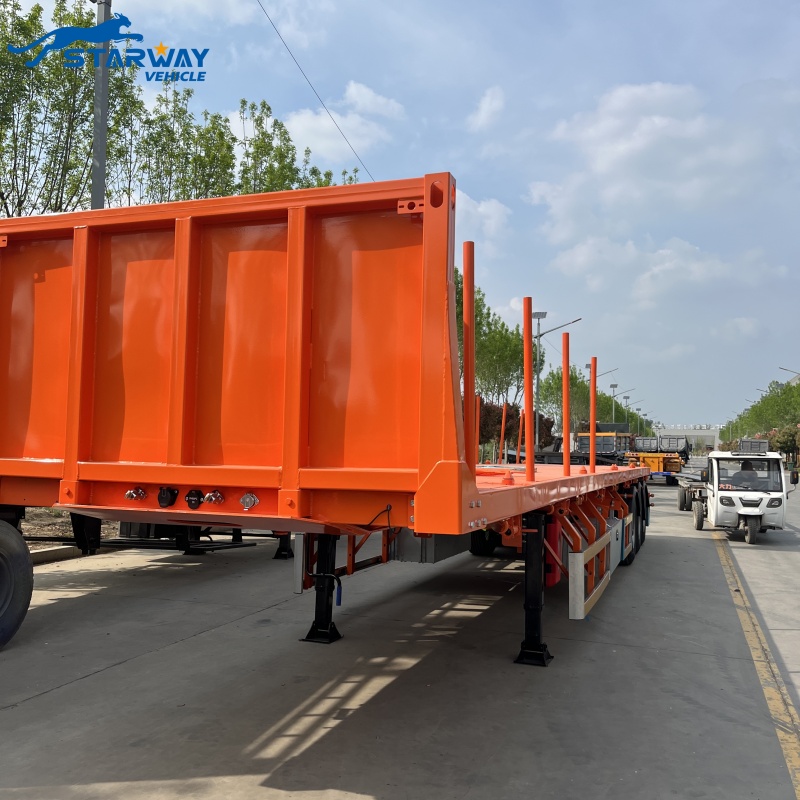

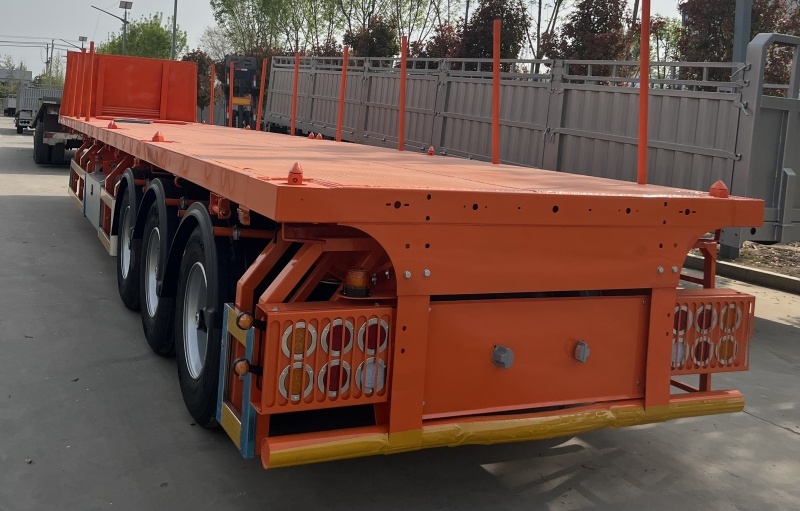

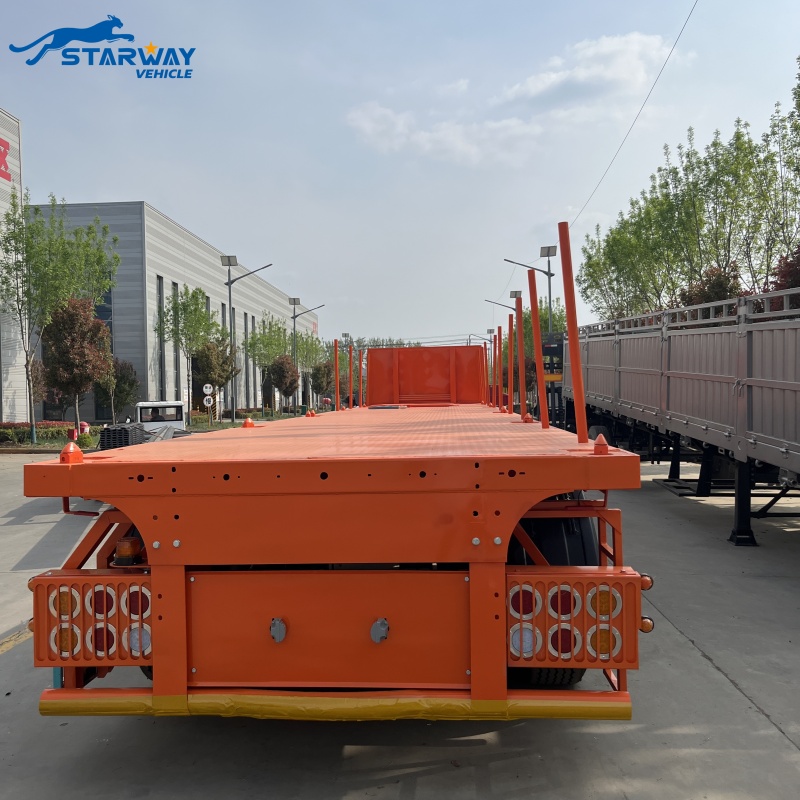

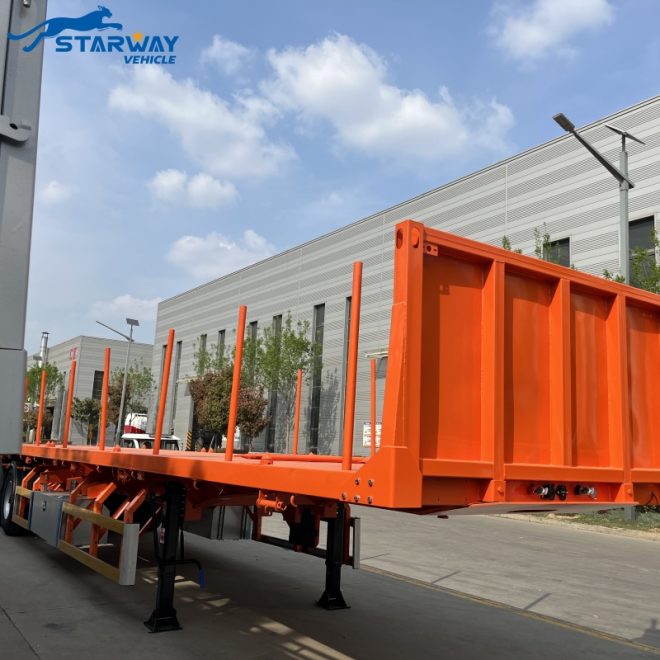

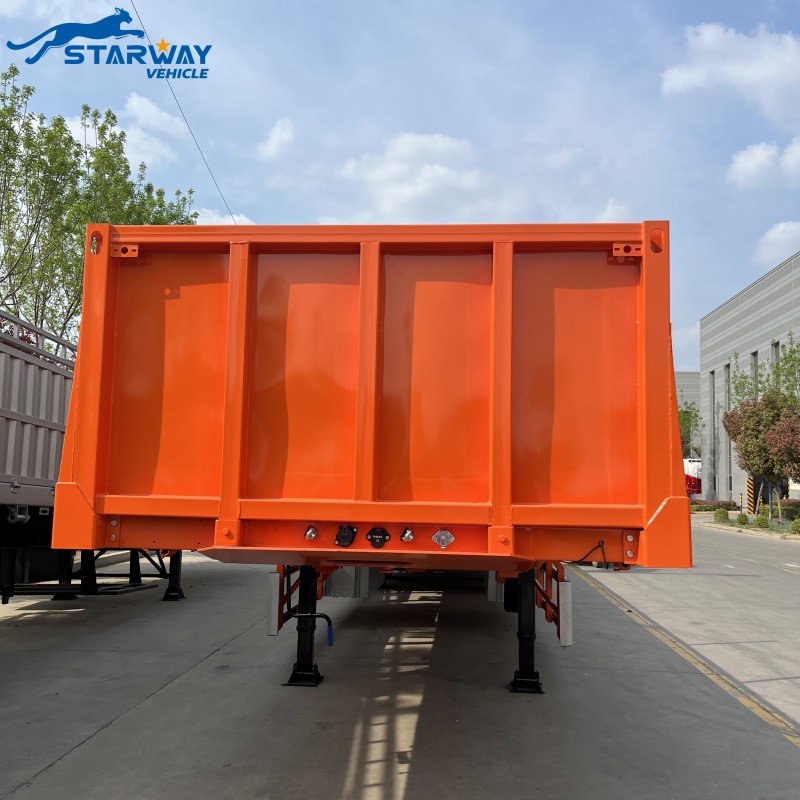

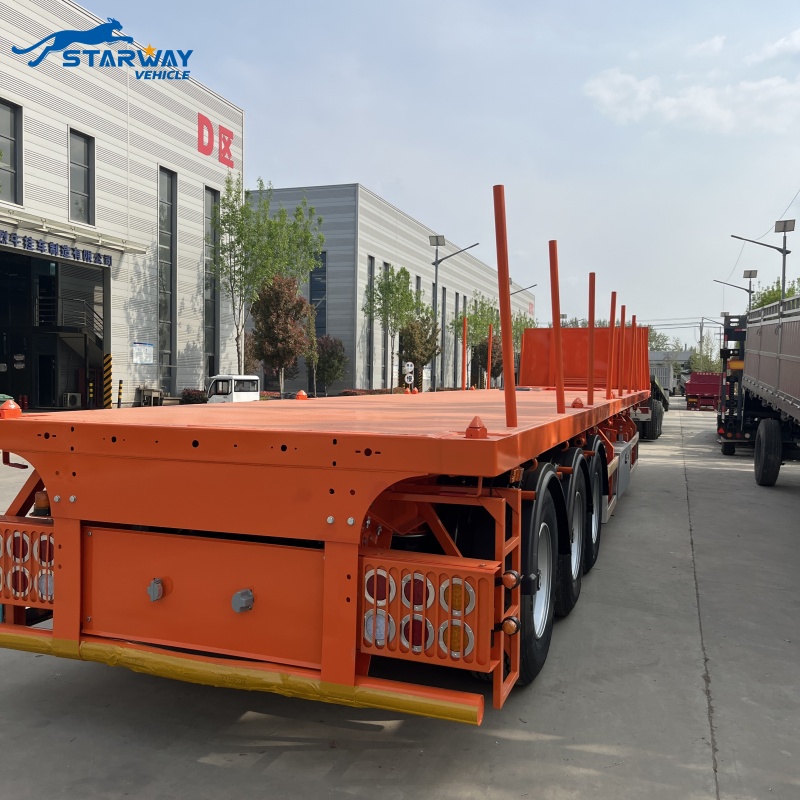

Starway vehicle 40ft container flatbed transport semi-trailer with a baffle on the front and 8 uprights on each side. It can be used to transport wood and logs. The uprights can be disassembled. It has 12 container twist locks and can transport 40ft containers. This semi-trailer can Carrying 60 tons of cargo, Starway is a Chinese manufacturer specializing in the production of various types of semi-trailers, such as flatbed semi-trailers, low-bed semi-trailers,dump semi-trailers, van semi-trailers, tanker semi trailer , Starway vehicle mainly exported to Africa, Southeast Asia, and South America, 40 years Production experience, deeply loved by customers
Starway can supply different kidns of flatbed trailers according to customer demand and local regulations
The drawing of Starway flatbed semi trailer as below
Product Parameters:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Features
Application scope: Starway flatbed trailers are specially designed for efficient container loading and unloading. If containerized or used within a port, we can customize the trailer to suit your needs.
Main beam structure: The main beam of the Starway flatbed semi-trailer is made of Q345 or T700 steel, providing a strong and durable frame that can load heavy objects even in harsh road conditions.
Axle configuration: 2-6 axles can be selected according to length and load capacity requirements, and the axle load capacity is 13/16/20 tons.
Suspension System: We offer mechanical suspension or air suspension depending on your needs.
Container twist lock: 12 sets, can load 20×20 feet or 40 feet containers
Application and after-sales service:
Starway Vehicles promises a two-year warranty. During this period, if any damage occurs under normal use, we will provide new spare parts free of charge.
Main beam: 2 years
Suspension: one year
Axle/Bearing Bush: One Year
Blackout system: one year
Landing gear/kingpin: one year
Tires: 6 months
